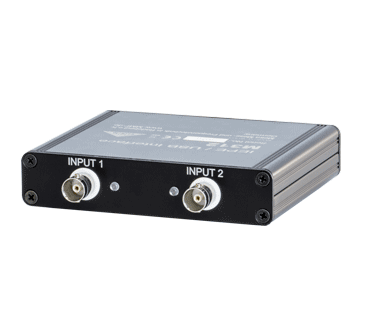

MMF M312B PC Based Vibration Measuring System (0.1~40000Hz, ±80~8000 mV)

Sensor inputs: 2 IEPE / AC; RI > 1 MOhm (BNC)

IEPE sensor supply: 2,8 mA / 22 V

Outputs: USB 2.0

Frequency range: 0.1 .. 40 000 Hz (-3 dB)

Accuracy: < 2%

Input ranges: ±8000 mV, ±800 mV, ±80 mV

TEDS support: IEEE 1451.4

A/D conversion: 24 Bit, 96 kHz / Kanal

Broadband noise, RMS: 3 µV (0,1 .. 40000 Hz)

Trigger inputs: 2 digital triggers, 0 .. 24 V, threshold: 1.5 V

Power supply: USB or via SYS1

Operating temperature range: -20 .. 55°C

Dimensions (W x H x D): 105 x 22 x 84 mm³ (without sockets)

Weight: 200 g
