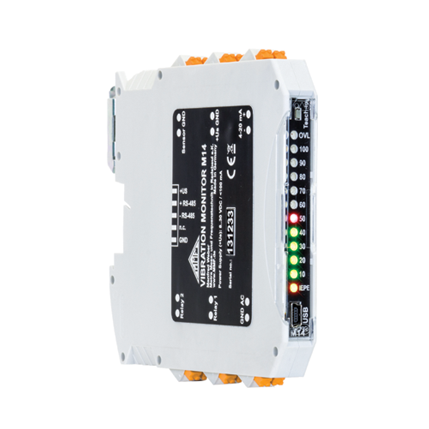

MMF M14 Universal Vibration Monitor (1~7000m/s², 10~7000 mm/s)

Monitoring modes:

Time domain: RMS and peak value

Frequency range: FFT

Vibration acceleration:

RMS: 1 – 7000 m/s² (Transd. sensitivity 1mV/ms-² )

Peak value: 10 – 10000 m/s² (Transd. sensitivity 1mV/ms-²)

Vibration velocity:

RMS: 10 – 7000 mm/s (Transd. sensitivity 1mV/ms-²)

Peak value: 100 – 10000 mm/s (Transd. sensitivity 1mV/ms-²)

Frequency range:

Vibration acceleration: 0.3 Hz-10 kHz

Vibration velocity: 2-1000 Hz

High pass filters: 0.3/5/10/20/50/100/200/500/1000 Hz; IIR; 2 poles

Low pass filters: 0.1/0.2/0.5/1/2/5/10 kHz; IIR; 2 poles

Output: Wide-band (AC); current loop; 2 relays

Digital Interfaces: USB (front); RS-485 (rear)

Power supply: 8-30 VDC

Dimension: 100 x 13 x 114 mm³
