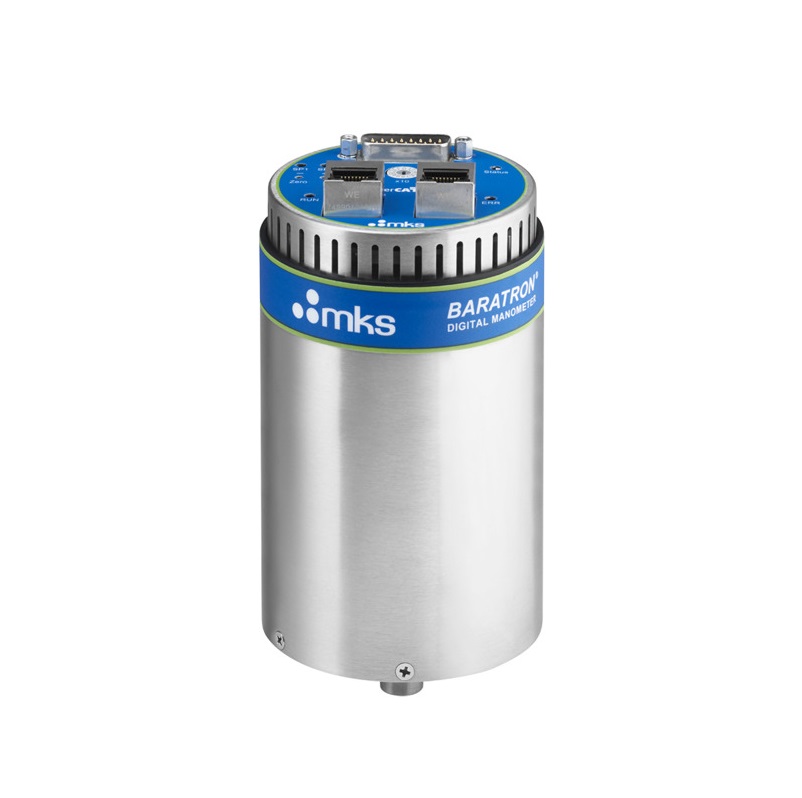

Full Scale Pressure Ranges: 1, 2, 3, 5, 10, 20, 100, 1000 Torr
Accuracy: ±0.25% of Reading
Temperature Coefficients – Zero:
- 150°C/160°C: ±0.004% Full Scale/°C for >1 Torr
±0.008% Full Scale/°C for 1 Torr range
- 200°C: ±0.008% Full Scale/°C for >1 Torr
±0.016% Full Scale/°C for 1 Torr range
Temperature Coefficients – Span: ±0.02% Reading/°C
Response Time:
- Analog/Digital: 35 ms (nominal) influenced by pressure range, step size, and digital pressure filter settings
- EtherCAT: Refresh Rate = 3.3 ms
Internal Volume: 6.3 cm3 typical
Input Power: ±15 VDC @ 1.6A or +24 VDC @ 1.3A at start up (factory set)
Output Signal: Analog 0-10 VDC into >10kW load, EtherCAT
Warmup Time: 2.5 hours typical
Operating Temperature Range: 15 to 50°C
Ambient Airflow Requirements:
- 150/160°C Models: 50 ft/min for ambient temperatures of 40 - 50°C
- 200°C Models: 150 ft/min for ambient temperatures of 40 - 50°C
Resolution: 0.001% of Full Scale
Overpressure Limit: 45 psia
Materials Exposed to Process Gases: Inconel® and Incoloy® nickel alloys (some fitting options are 300 Series Stainless)
Fittings:
- Standard: ½'' (12 mm) OD tube
- Optional: Swagelok® 8 VCR® female, 8 VCR male, NW16-KF, NW25-KF, Mini-CF, 1.5'' TriClover, and 2'' TriClover
Compliance: CE, UL1577 (Trip Relays only)
For specific range please check the attachment below!
