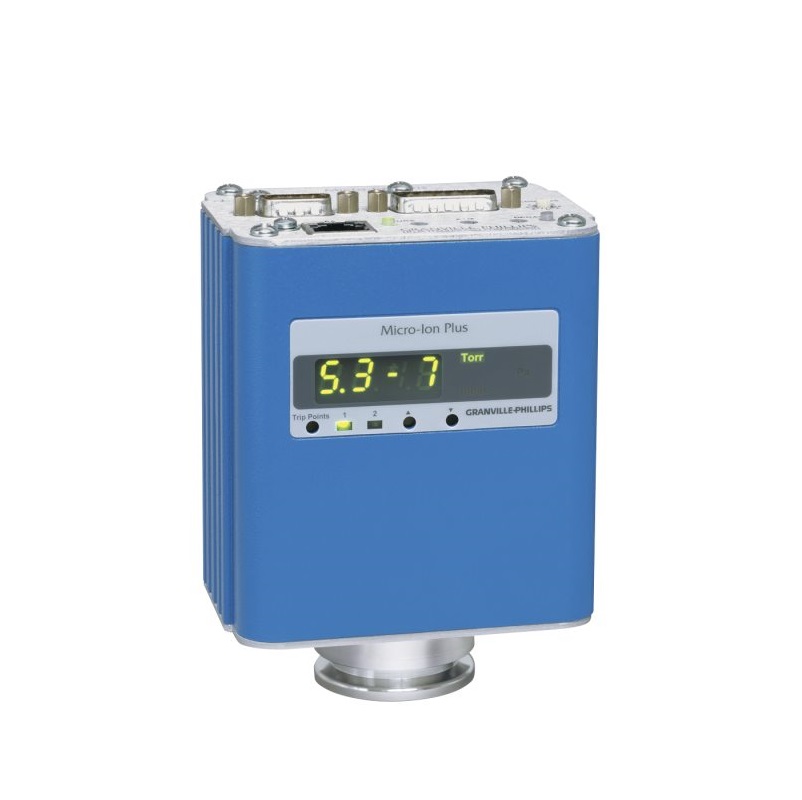

Range: 1 x 10-9 - 50 Torr
Measurement Range: 1 x 10-9 Torr to atmosphere (for Air and N2)
Repeatability: <5% of Reading from 1 x 10-8 - 50 Torr
Accuracy: <15% of reading from 1 x 10-8 - 50 Torr
Filament: Yttria-coated Iridium
Fitting Type: ISO-KF
Flange Size: NW25
Interface: RS485
Operating Temperature: 10 - 40°C ambient, non-condensing
Bake Out Temperature: 150°C (with electronics removed)
Storage Temperature: -40 - 70°C
Relays: 2 single-pole, double-throw relays (SPDT)
Relay Contact Rating: 1 Amp @ 30 VDC resistive, non-inductive
Power Requirements: 24 VDC ±15%, 26 Watts max.
Exposed Materials: 304 stainless steel, tantalum, tungsten, nickel, nickel iron alloy, borosilicate glass
Case Material: Aluminum extrusion
Internal Volume: 10.8 cm3 (0.67 in3) to the port screen
Units: Torr
Display: 2 digits plus exponent, green LED
X-ray Limit: <3 x 10-10 Torr
