Measurement range: ±1mm
Resolution: 0.1 m
Max. permissible probing error during scanning: MPETHPʺ3.0 m (Crysta-Apex C series: if the ø4x18mm stylus is used.)
Spring rate: 0.75N/mm
Max. stylus length: 200mm for both vertical and horizontal
Max. stylus mass: 75g
Stylus mount: M4 screw
Max. scanning speed: 120mm/s
Air flow rate: 30NL/min
Probe head: N/A
Applicable models: CNC CMM (Crysta-Apex C series, Bright-STRATO series)
Automatic stylus change system (optional):
- 4 standard units [Port 1 is dedicated to the standard stylus (for calibration purposes)]
- Expandable to a maximum 10 ports. However, all styli should be arranged on the same axis.
Configuration

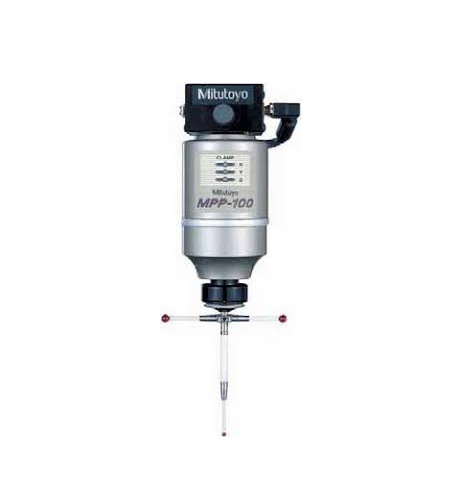

MPP-100 probe main unit
Damping oil
Connection air hose
Storage box
ø4X18mm stylus
ø4X50mm stylus
Extension L=30 mm
Extension L=50 mm
Extension L=100 mm
MS4-stylus knuckle
MS4-stylus center
Stylus tool
Allen wrench
Inspection certificate
MPP-100 Hardware Guide
