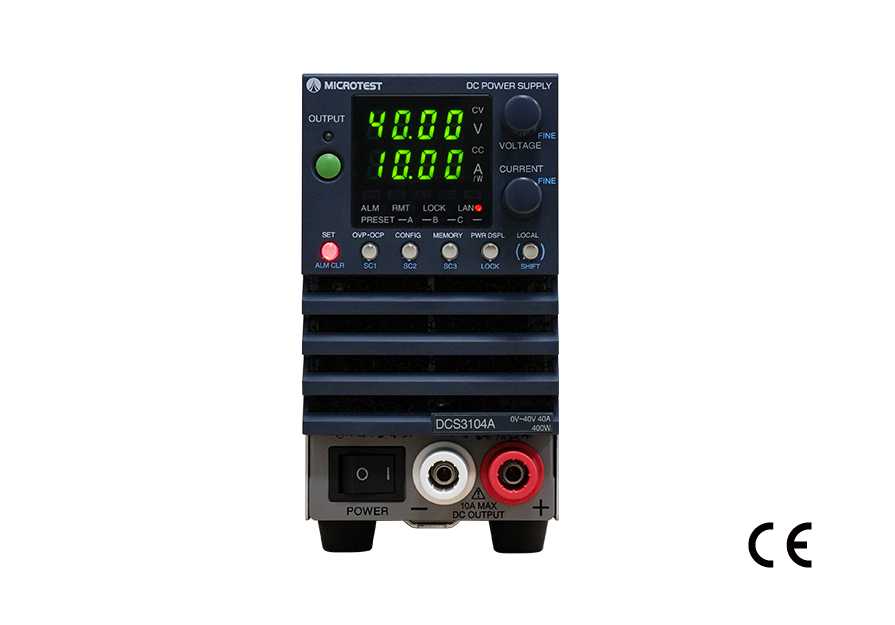

MICROTEST DCS3104A Wide-Range DC Power Supply (0V~40V; 0A~40A; 400W)

AC input:

Input rating:100Vac~240Vac, 50Hz~60Hz, single phase

Input voltage range:85Vac~265Vac

Input frequency range:47Hz~63Hz

Current（TYP.）*1:

100 Vac:5.6A

200 Vac:2.8A

Inrush current:25A or less

Power（MAX.）*2:560VA

Power factor（TYP.）*1: 0.99（input voltage: 100V）／ 0.97（input voltage: 200V）

Efficiency（TYP.）*1: 75%

Continuous output time *2: 20ms or more

*1 At the rated output power for the rated output current.

*2 100 Vac, at the rated output power.

Output:

Rating:

Output voltage*1: 40V

Output current*1: 40A

Output power:400W

Programmable Internal Resistance (Max.): 1.000Ω

*1 The maximum output voltage and current are limited by the maximum output power.

Display function:

Voltage display:

Max display:99.99

Display accuracy: ±（0.2% of reading +5digits）

Current display:

Max display: 99.99

Display accuracy:±（0.5% of reading +8digits）

Power display PWR DSPL light will red:Max display

Display accuracy: Displays the product of voltage and current values
