Type of battery pack: Li-ion
Battery voltage: 18 V
Battery pack capacity: 3 x 4 Ah
Maximum torque, soft: 55 Nm / 487 in-lbs
Pulse torque: 60 Nm / 531 in-lbs
Maximum torque, hard: 110 Nm / 974 in-lbs
Adjustable torque: 1.5 - 24 Nm // 13 - 221 in-lbs
Drill Ø masonry: 16 mm / 5/8 "
Drill Ø steel: 13 mm / 1/2 "
Drill Ø soft wood: 65 mm / 2 1/2 "
No-load speed: 0 - 500 / 0 - 1700 rpm
Maximum impact rate: 32300 bpm
Chuck capacity: 1.5 - 13 mm // 1/16 - 1/2 "
Weight (including battery pack): 2.4 kg / 5.3 lbs
Vibration
Drilling in metal: 2.5 m/s²
Uncertainty of measurement K: 1.5 m/s²
Impact drilling concrete: 13 m/s²
Screwdriving without impact: 2.5 m/s²
Uncertainty of measurement K: 1.5 m/s²
Noise emission
Sound pressure level: 80 dB(A)
Sound power level (LwA): 91 dB(A)
Uncertainty of measurement K: 3 dB(A)

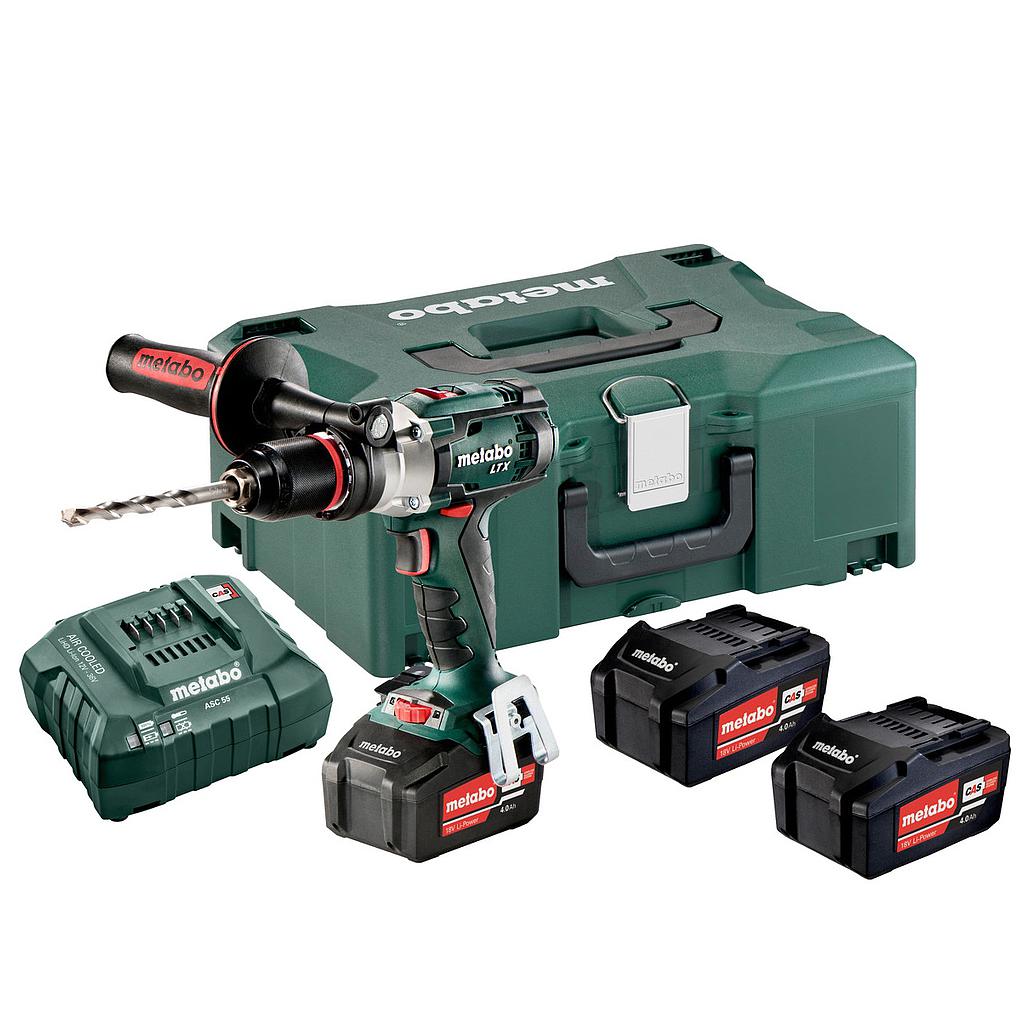

Delivery
Futuro Plus keyless chuck with metal sleeve
3 Li-Power battery packs (18 V/4.0 Ah)
Charger ASC 55 "AIR COOLED"
MetaLoc case
Side handle
Belt hook and bit case
Accessories
DRILLING/CHISELLING
Concrete/stone drill bits, Wood drill bits, Metal drill bits, Hole saws, Universal drill bits, Glass drill bits, Diamond drill bits, Drill bit assortments, Core bits, Further accessories for (impact) drills
ACCESSORY SETS/SPECIALS
Bit sets, Drill bit sets
CHUCKS
Keyless chucks
SCREWDRIVING/FIXING
Screwdriving bits, Screwdriving bit sets, Bit holders, Screw-type angle attachments, Accessories for impact drivers & wrenches, Other accesssories screwdriving/fixing
ACCESSORIES FOR CORDLESS MACHINES
Battery packs, Charger
OTHER ACCESSORIES
Case systems, Occupational safety
Datasheet
Features
Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces
Powerful Metabo 4-pole motor for fast drilling and screwdriving
High-performance impact mechanism for optimum drilling performance
Spindle with hexagonal recess for screwdriver bits for working without chuck
Collar (Ø 43 mm) for versatile use
Integrated working light to illuminate the contact area
Robust die cast aluminium gear housing for optimum heat dissipation and long service life
With handy belt hook and bit case which can be fixed either on the right or left side
Battery packs with capacity display for checking the charge status
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
