Dimensions: 1650 x 650 x 1000 mm / 5.5 x 2.2 x 3.3 ft
Max. support surface: 800 x 550 mm / 31 1/2 x 21 5/8 "
Working height: 850 mm / 33 1/2 "
Cutting height: 0 - 85 mm // 0 - 3 5/16 "
Maximum cutting height 90/45°: 85 / 60 mm // 3 5/16 / 2 3/8 "
Maximum cutting width at parallel guide/rip fence: 290 mm / 11 3/8 "
Maximum material width at mitre fence: 220 mm / 8 5/8 "
No-load speed: 2990 rpm
Cutting speed: 50 m/s / 164 ft/s
Saw blade: 315 x 30 mm / 12 3/8 x 1.181 "
Saw blade swivel range: 0 - 45 °
Mains voltage: 380 - 415 V
Rated input power: 2800 W
Weight: 64 kg / 141 lbs kg
Noise emission
Sound pressure level: 98 dB(A)
Sound power level (LwA): 112 dB(A)
Uncertainty of measurement K: 4 dB(A)
Delivery
Carbide saw blade with alternately bevel-ground tips (24 teeth)
Table extension (550 x 800 mm)
Chip and Dust Extraction Unit
Push stick
Wheel set incl. handles
Universal guide
Accessories
SAWING
Circular saw blades, Other accessories for semi-stationary/stationary circular saws, Other accessories for semi-stationary/stationary saws
OTHER ACCESSORIES
Occupational safety
Datasheet
Features
Restart protection: prevents unintentional start-up after power supply interruption

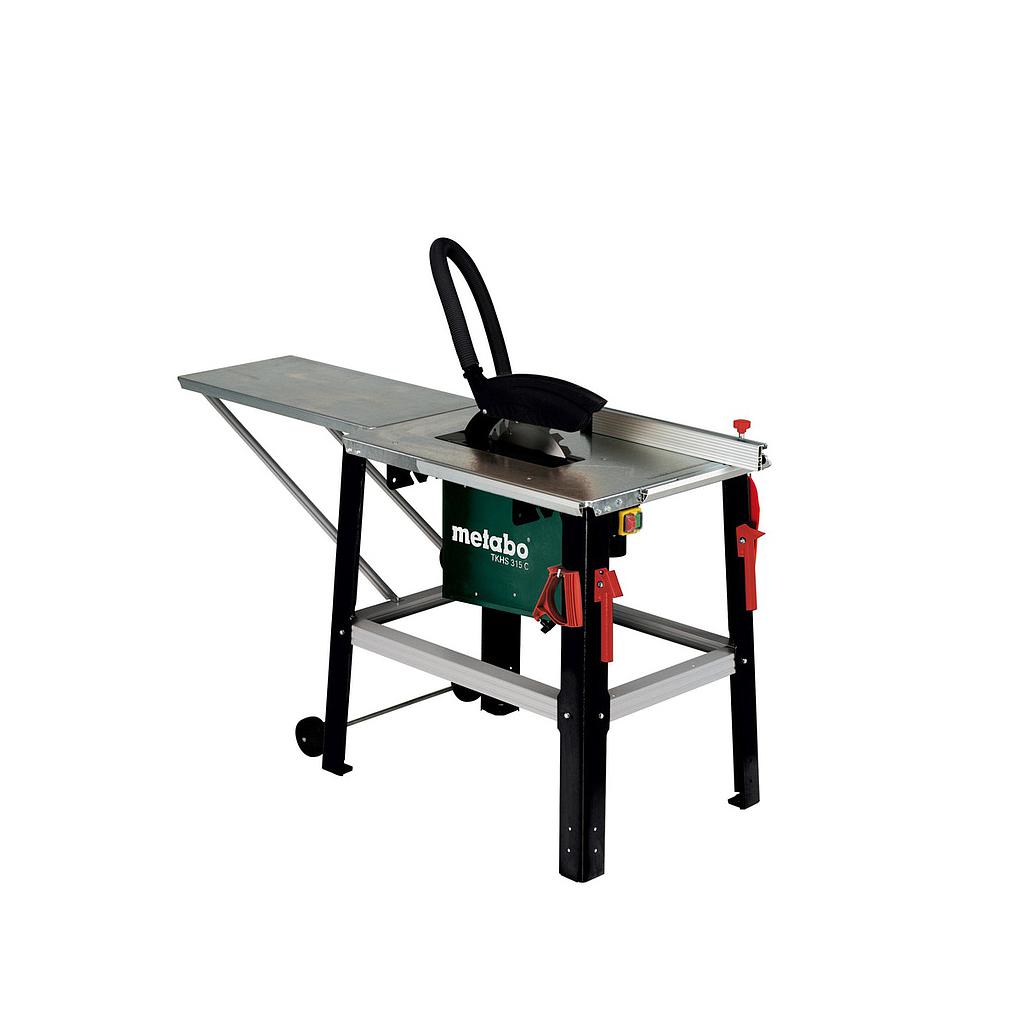

Universal table saw with basic equipment
Ideal for sawing squared timber, boards, panels and wood-like materials in the workshop and at construction sites
Quiet induction motor with motor brake and overload protection - maintenance-free and robust.
Universal guide with magnetic guide for precise straight cuts and mitre cuts
Freely height-adjustable saw blade
Comfortable setting of the saw blade inclination from the front
Sturdy, powder-coated sheet steel design and galvanised table-top
Foldable table length extension
Frame and motor pre-mounted
High torque three-phase motor
