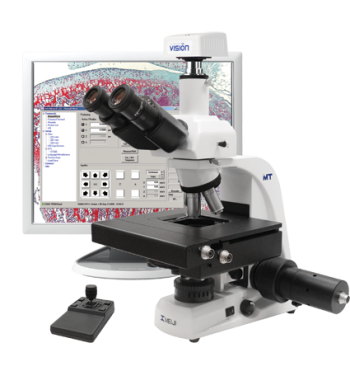

MT5300LM Features:
Motorized stage for biological microscope, 2 or 3 levels, 75x30 mm
Automated focus control (Z-movement)
Mechanical stage and focus control
Vision CAM 3200- USB 3.0 digital output, 5.1 MP, image sensor CMOS 1/1.8”, resolution: 2064x1544 pixels, 120 fps, Sony IMX252 CMOS
PC/Monitor – CPU Intel Core i7 7 Gen, GPU NVIDIA GeForce GTX x50 4GB, RAM 8 GB, HDD 1 GB, USB 3.1 Gen 1, Windows 10 64x, monitor resolution: 1920x1080
Keyboard and Mouse
ICOS™ (Infinity Corrected Optical System) with advanced optics
Super widefield high eyepoint eyepieces 10x, F.N. 22 (standard)
Ergonomic revolving nosepiece for 5 objectives to change magnification
New advanced Planachromat infinity corrected objectives
Koehler illumination 6 V, 30 W high-brightness LED or halogen transmitted light illuminator
Built-in power supply with automatic voltage detection
Abbe condenser or universal Zernike phase contrast condenser
Various filters and accessories
Research methods include brightfield, darkfield, phase contrast, and polarized light
Photo and video documentation
Meiji Techno MT5300LM has the following items:
Microscope Components:
MT5300L microscope stand
Trinocular head with photo port
Eyepiece block for Siedentopf style head
SWH 10x F.N. 22 mm eyepiece (2)
Rubberized Eyepiece eyeshields (2)
Condenser Numerical Aperture 0.9/1.25
Stage Components:
Motorized stage for 1 slide
MA motorized focus drive
Adapter plate for focus drive (two plates, steel pin, screw)
Retaining ring for focus drive
Spring-loaded coupling with two screws
Tango 3-axis controller and 3-axis joystick
Countersunk screw M3x6 DIN 7991 for focus drive (2)
Allen screw M3x8 DIN 912 for stage (4)
Screw kit (SW 3.0 2.5 2.0 1.5 1.3)
CPU and Monitor Components:
High power PC with monitor and keyboard
Mouse with mouse pad
Microscope dust protection
Object micrometer
Vision Slide Software (CD)
Protection dongle
3-axis motor cable
Power cable (specify 110V or 220V)
Surge protector
Microscope Objectives:
Objective U Plan 4x/0.10
Objective U Plan 10x/0.25
Objective U Plan 40x/0.65
Objective U Plan 100x/1.25
Microscope Camera:
Optical C”-mount 0.5x
Digital camera CAM V3200
Camera power supply
Camera power extension cord
Camera USB cable
