EYEPIECE
Extended Wide Field (EWF) plan 10X eyepieces with 20mm field of view and adjustable diopter on the left eyepiece for finity corrected systems (23.2mm tube. Tube length 160mm).
Extended Wide Field (EWF) plan 10X eyepieces with 22mm field of view and adjustable diopter on both eyepieces for infinity corrected IOS plan.
Viewing Head
Binocular and trinocular Siedentopf type heads with 30-degree inclined tubes. Interpupillary distance from 48 to 76 mm.
The trinocular head of the Plan infinity corrected models has an optical path selector (100:0 / 50:50) and ±5 diopter adjustments on 30mm tubes.
A Unique rotating system allows the ergonomic positioning of both tubes in a high (431 mm) and a low position (397mm).
The trinocular head comes with a 23.2 mm photo port.
MULTIHEAD SYSTEM

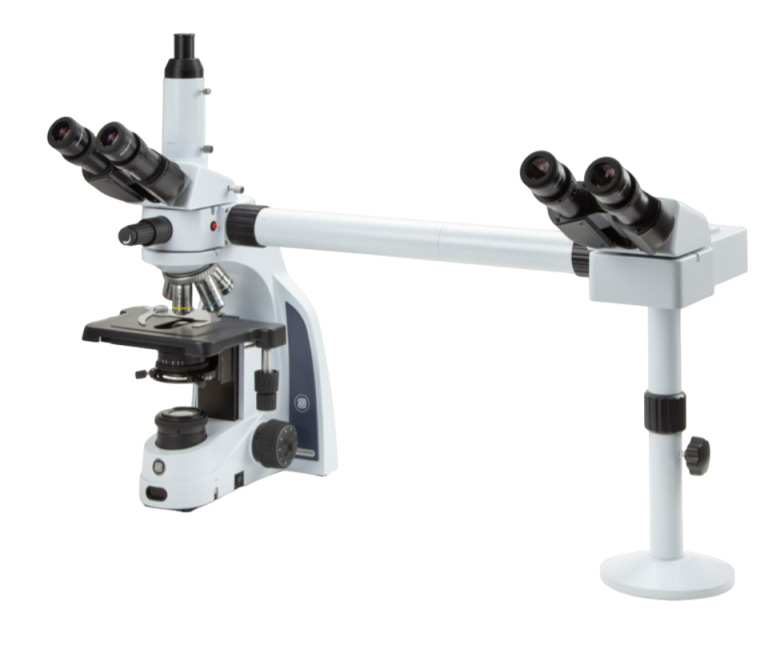

The MT-60/MT-61 can be extended with a unique multiheaded system for in total of two, three or nine heads, allowing simultaneous observation of specimens. The central attachment is equipped with a joystick to move a green and red laser pointer across the entire field of view of all heads. Configurations with 30 degrees inclined tubes and plan 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives. All heads are equipped with extended wide field plan EWF 10x/22mm eyepieces.
Nosepiece
Revolving quintuple reversed nosepiece on ball bearings.
Objectives
Plan IOS 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion infinity corrected objectives.
Optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
Stage: 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage.
Focusing
Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per rotation. Total travel approximately 24 mm.
Rack-stop for protection of slides and objectives. Friction adjustment.
Condenser
Height adjustable Abbe N.A. 1.25 condenser with an opening for optional sliders.
Illumination
Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V power supply (CE).
iCare Sensor: the illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energy.
