Eyepieces:
EWF 10x, Field of View 20 mm, diopter adjustment on left eyepiece (Tube 23.2 mm, Tube length 160 mm)
Field of View 22 mm, diopter adjustment on both eyepieces
Viewing Head:
Binocular and Trinocular: 30° inclined tubes
Interpupillary Distance: 48–76 mm
Trinocular ratio: 100:0 / 50:50
Diopter Adjustment: ±5 on 30 mm tube
Tube Rotation System: High position 431 mm, Low position 397 mm
Trinocular port: 23.2 mm
Multi-Head System:
MT-60/MT-61 expandable to 2, 3, or 9 heads for simultaneous observation
Central controller for moving green and red laser beams
Compatible with 30° inclined tube and Plan objectives 4x, 10x, 40x, 100x oil, Infinity corrected IOS
EWF 10x/22 mm eyepiece

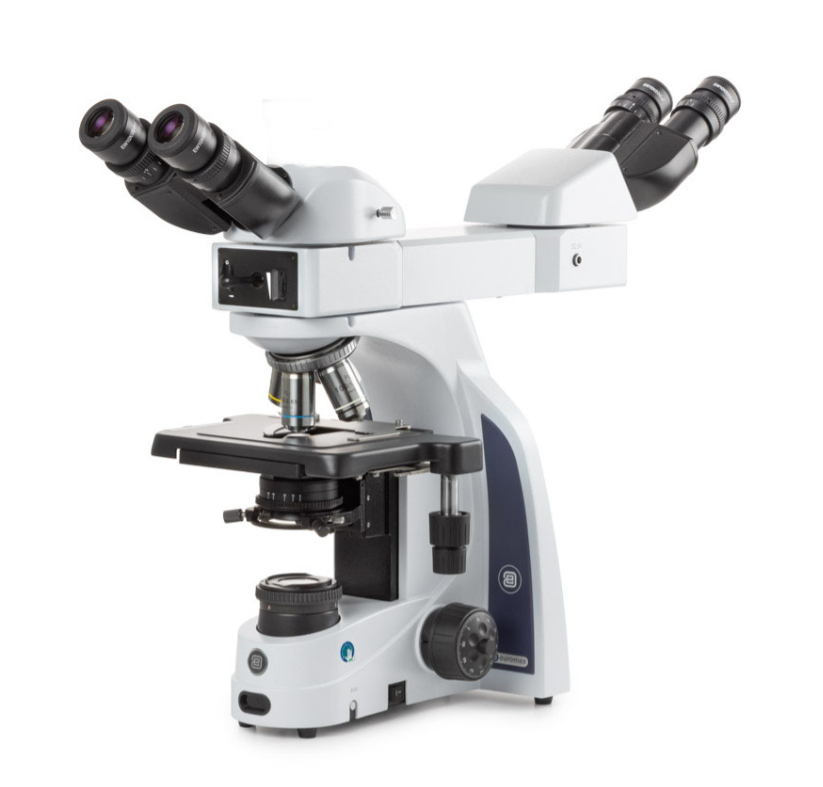

Viewing Head:
Binocular head with additional binocular tube, 30° inclined
Interpupillary Distance: 50–75 mm
Diopter Adjustment: ±5 on left tube
Objectives:
Plan IOS 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 oil, Infinity corrected
Anti-fungus and anti-reflection coating
Stage:
Rackless stage: 216 × 150 mm
Integrated mechanical stage: 79 × 52 mm
Focusing:
Coaxial coarse and fine adjustment, 200 divisions
Precision: 1 μm, 0.2 mm per rotation
Total travel: ~24 mm
Rack-stop protection for slides and objectives
Friction adjustment
Illumination:
Diascopic NeoLED Köhler 3W, intensity adjustable
Internal power supply 100–240V (CE)
iCare Sensor: automatic shut-off when observer leaves, energy saving
