Viewing Heads

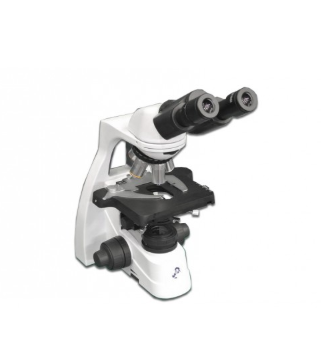

Binocular with a Siedentopf head, 30° inclined tube
Equipped with a diopter ±5 adjustment on left eyepiece.
Interpupillary distance adjustment 48-76mm
360° degree rotatable
Plan infinity corrected objectives have a unique swiveling system of the eyepiece tubes for ergonomic positioning of both tubes in a high (431mm) and in a low position (377mm)
Eyepieces
Paired HWF 10x/20mm F.O.V. 23.3mm eyepiece
Integrated diopter adjustment
Objectives
Infinity Corrected Plan Achromat 4X/N.A. 0.10, 10X/N.A. 0.25, 40X/N.A. 0.65 spring loaded, 100X oil N.A. 1.25, 180mm tube length
Spring loaded objectives
All optical parts are anti-fungus treated, for humid and tropical climates
Nosepiece
Revolving quintuple reversed nosepiece on ball-bearings, RMS threads
Stage
152/197 mm x 131 mm integrated mechanical stage
Equipped with a heating stage which can set up to 50°C controlled by a PID temperature.
X-Y movement of 75 mm x 36 mm rackless stage
Locked-on spring loaded stage clip (paired)
Condenser
Abbe condenser, N.A. 1.25
Iris diaphragm and swing-out filter holder.
Focusing Adjustment
Double coaxial coarse and 200 µm fine adjustments per rotation, total travel range 19mm
Friction adjustment
Rack and pinion focusing with slip clutch and tension adjustment
“Slip-clutch” system protects against over-focusing with 180 graduations.
Illumination
3 W NeoLED™ adjustable illumination with internal power supply/charger
Auto voltage sensing power supply, 100-240V
Rechargeable batteries is optional for cordless operation if available
NeoLED™ Illumination
3 W Kohler adjustable illumination with internal power supply/charger
Internal sensing power supply, 100-240V worldwide
Offers large apertures to produce higher resolution images.
Kohler Illumination
A Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source.
The Köhler illumination is optional for non-IOS models

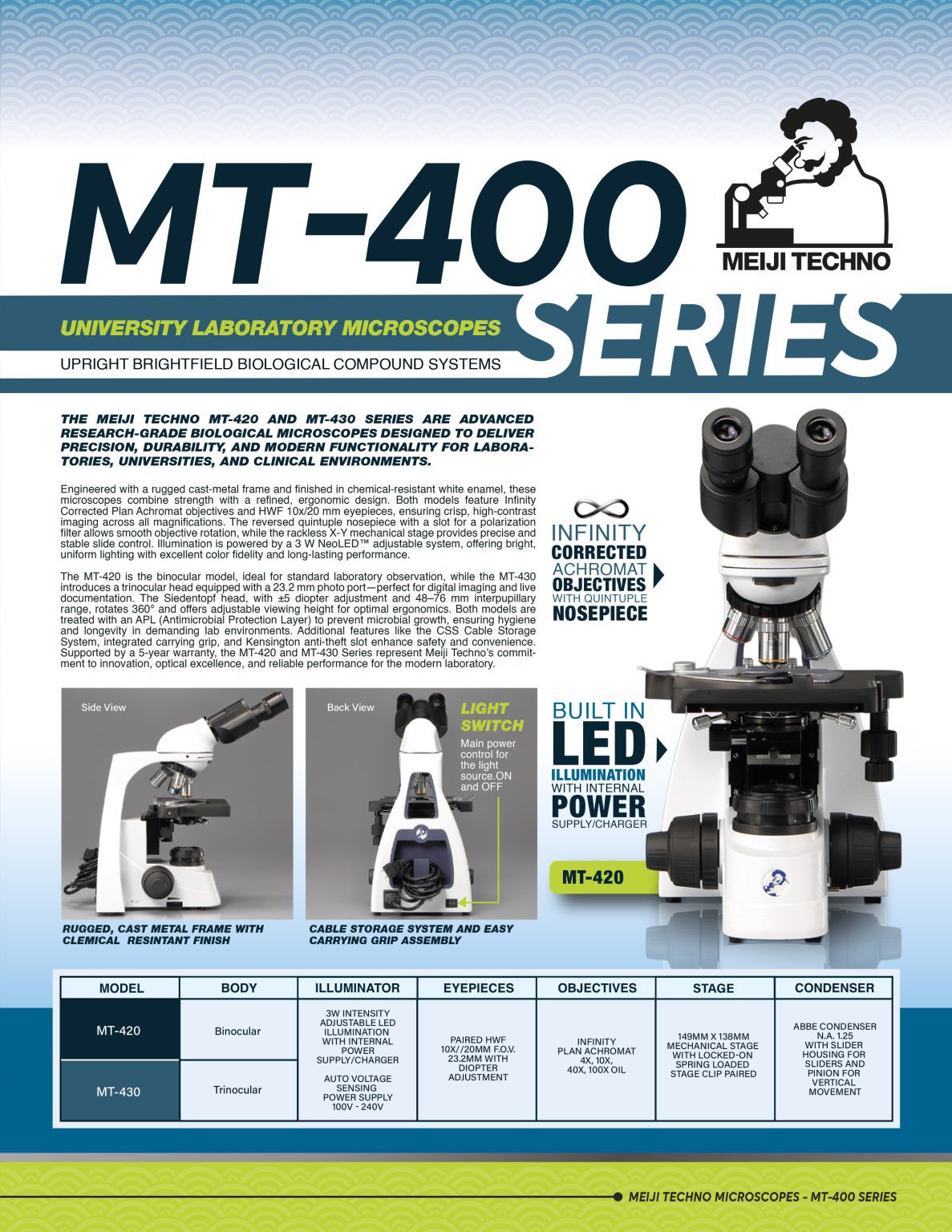

Datasheet
