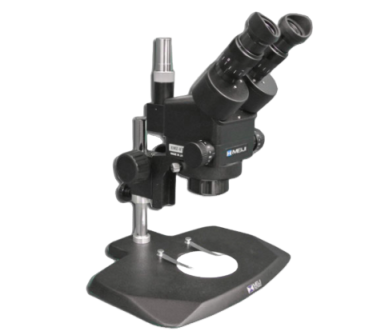

EMZ-8TR/BLACK Body
Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction
Trinocular Port: 23.2mm I.D, 25.2mm O.D
Zoom Ratio: 6.5:1
Zoom Range: 0.7x - 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x - 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm - 5.1mm
Working distance: 104mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm - 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.45x - 202.5x (With auxiliary lenses and eyepieces)
Extended Working Distances: 57mm - 250mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.28x (300mm), 0.35x (250mm), 0.44x (184mm), 0.5x (174mm), 1.5x (57mm), and 2x (36.6mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
MA502
Eyepiece: Super Wide Field 10x Eyepieces (paired), (30.5mm Outer Diameter), Field No. 23 (With 25mm reticle mount)
PK/BLACK Stand
PK Stand is designed for the zoom (EMZ Series), and turret (EMT Series), fixed (EMF Series) stereo bodies Pillar diameter is 20mm, height is 11” (280 mm)
Auto-Voltage Sensing Power supply (100V to 240V)
MA551-A 5” extension pillar for the threaded vertical post is also available if needed to accommodate taller specimens
ESD Safe, Chemical Resistant Finish
Cast Aluminum Alloy Construction
Compact Footprint Design: Length:330mm, Width: 300mm, Height: 255mm
