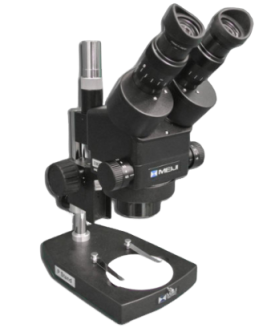

EMZ-8TR/BLACK Body
Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction
Trinocular Port: 23.2mm I.D, 25.2mm O.D
Zoom Ratio: 6.5:1
Zoom Range: 0.7x - 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x - 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm - 5.1mm
Working distance: 104mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm - 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.45x - 202.5x (With auxiliary lenses and eyepieces)
Extended Working Distances: 57mm - 250mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.28x (300mm), 0.35x (250mm), 0.44x (184mm), 0.5x (174mm), 1.5x (57mm), and 2x (36.6mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
MA502
Eyepiece: Super Wide Field 10x Eyepieces (paired), (30.5mm Outer Diameter), Field No. 23 (With 25mm reticle mount)
P Stand
Dimensions: 150mm (5.9") wide by 230mm (9.05") deep
Pillar Height: 9” height - 20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Color: Black
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: F Focus Holder Block included with 84.2 mm diameter opening which accepts 84 mm stereo body. Rack and pinion mount allows smooth precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment ( F holder)
