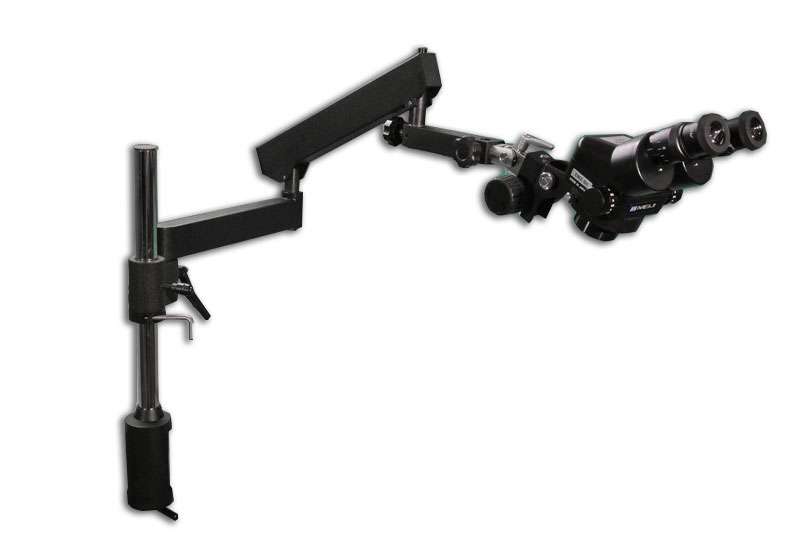

EMZ-5H/BLACK Body:
Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 6.5:1
Zoom Range: 0.7x - 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x - 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm - 5.1mm
Working distance: 93mm
Eyetube Inclination: 45°
Eyepieces: High Eyepoint 10x, (MA522- Paired) (required)
Interpupillary Distance: 54mm - 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x - 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 34mm - 251mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
MA522 Super Widefield High Eyepoint 10X
Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount. This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)
FS/BLACK-holder: Uses 15.8mm (5/8") diameter, 34.5mm long mounting pin. The 84.2mm diameter opening accepts all EM Series stereo bodies.
FA-3B
Stand Type: Flexible Arm
Vertical Post Height: 384mm
Maximum Vertical Post Extended Length: 254mm
Vertical Post Diameter: ?37.2mm
Cross Adapter Type: Dual Hole Adapter
Total Arm Length: 800mm
Mounting Hole on the Top of Horizontal Arm: 5/8" End Adapter
Horizontal Rotation Angle: 360 degrees Rotatable
Horizontal Arm Travel Maximum Load: 9.07kg (20lbs)
Horizontal Arm Travel Mode on Horizontal Direction: Manual
Horizontal Arm Travel Mode on Z Direction: Manual
Base Type: Clamp
Base Shape: Rectangle
Base Dimensions: 104mm x 77mm x 136mm
Mount Adapter Size of Stand: ?22.2mm
Clamp Opening Size: 0-40mm
Surface Treatment: Electroplating Black
Material: Metal
