Torque

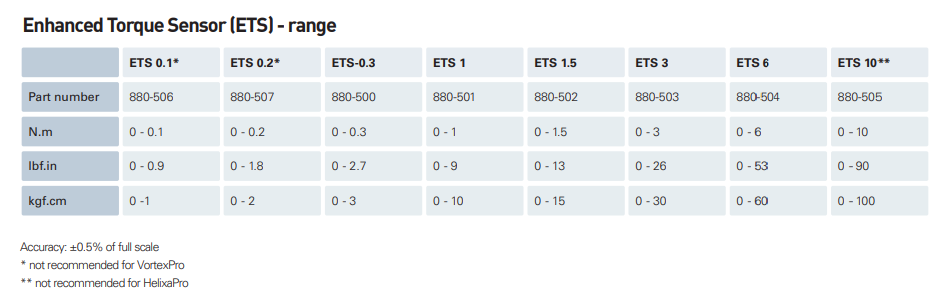

Torque Sensors (ETS): 7 models, from 0.1 - 6 N.m
Accuracy: ±0.5% of full scale
Resolution: 1:50,000
Units of measurement: mN.m, N.cm, N.m, kgf.cm, gf.cm, ozf.in, lbf.in, lbf.ft
Sampling rate: 20 kHz
Data-acquisition rate: 1000 Hz, 500 Hz, 100 Hz, 50 Hz, 10 Hz (user selectable)
Angle
Angular rotation (from tared position): 2,999 revs
Accuracy: ±0.2°
Resolution: 0.1°
Speed
Range: 0.1 - 30 rev/min (clockwise or counter-clockwise)
Accuracy: ±1% of indicated speed
Resolution: 0.001 rev/min
Axial alignment
Total runout (without fixtures): Better than ±0.25 mm
Dimensions
Maximum headroom: 350 mm without fixtures
Crosshead stroke: 292 mm
Throat depth: 112 mm
Height: 750 mm
Width: 290 mm
Depth: 414 mm (without external counterbalance), 500 mm (with external counterbalance and weights)
Weight: 33 kg
Common specifications
Maximum power requirements: 120 W
Voltage: 230 V AC 50 Hz or 110 V AC 60 hz
Operating temperature: 10 - 35°C (50 - 95°F)
Humidity range: Normal industry and laboratory conditions, non-condensing
