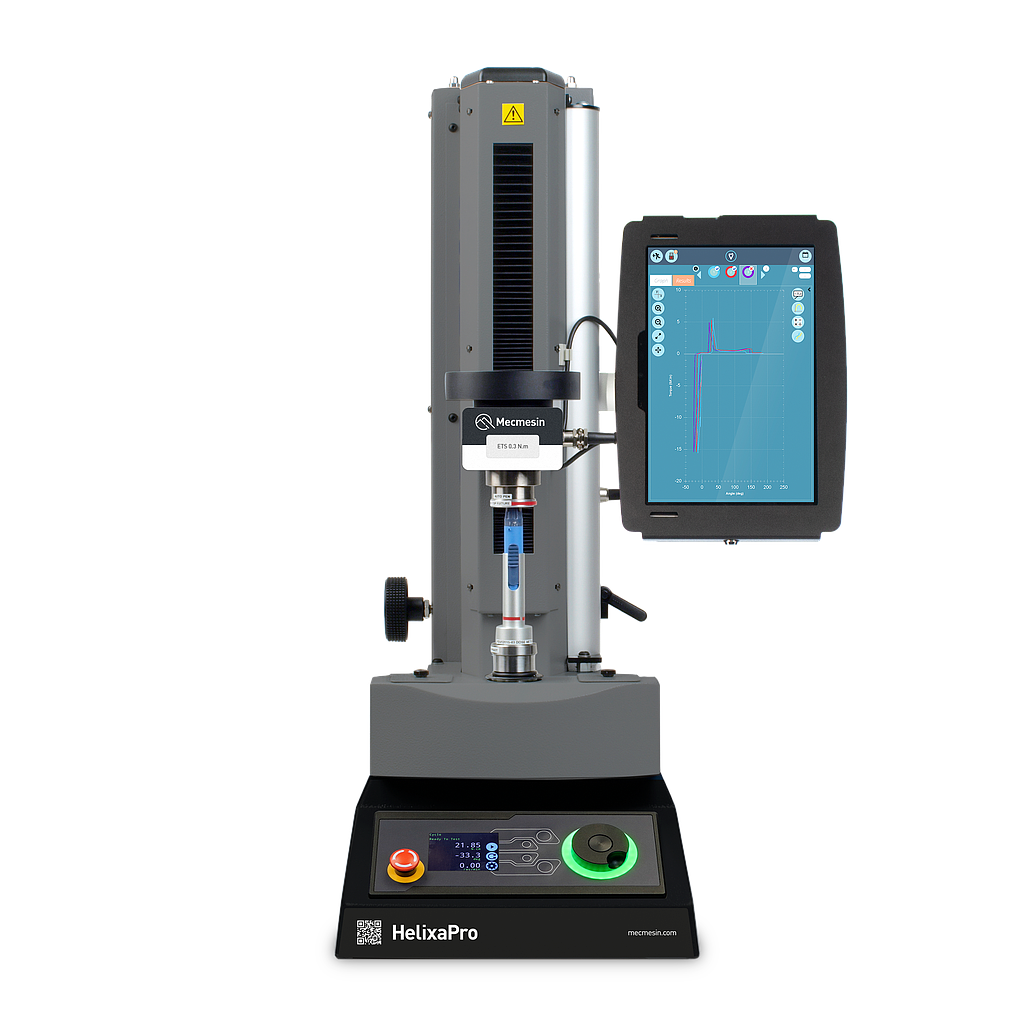

Mecmesin HelixaPro Touch Precision automated torque tester (6 N.m / 50 lbf.in / 60 kgf.cm, Console-driven)

Torque Capacity

Test frame (rated torque) : N.m 0 - 6; kgf.cm 0 - 60; lbf.in 0 - 53

Torque

Torque Sensors (ETS): 7 models, from 0.1 - 6 N.m

Accuracy: ±0.5% of full scale

Resolution: 1:50,000

Units of measurement: mN.m, N.cm, N.m, kgf.cm, gf.cm, ozf.in, lbf.in, lbf.ft

Sampling rate: 20 kHz

Data-acquisition rate: 1000 Hz, 500 Hz, 100 Hz, 50 Hz, 10 Hz (user selectable)

Angle

Angular rotation (from tared position): 2,999 revs

Accuracy: ±0.2°

Resolution: 0.1°

Speed

Range: 0.1 - 30 rev/min (clockwise or counter-clockwise)

Accuracy: ±1% of indicated speed

Resolution: 0.001 rev/min

Axial alignment

Total runout (without fixtures): Better than ±0.25 mm

Dimensions

Maximum headroom: 350 mm without fixtures

Crosshead stroke: 292 mm

Throat depth: 112 mm

Height: 750 mm

Width: 520 mm (incl. Touch console)

Depth: 414 mm (without external counterbalance), 500 mm (with external counterbalance and weights)

Weight: 35 kg

Common specifications

Maximum power requirements: 120 W

Voltage: 230 V AC 50 Hz or 110 V AC 60 hz

Operating temperature: 10 - 35°C (50 - 95°F)

Humidity range: Normal industry and laboratory conditions, non-condensing
