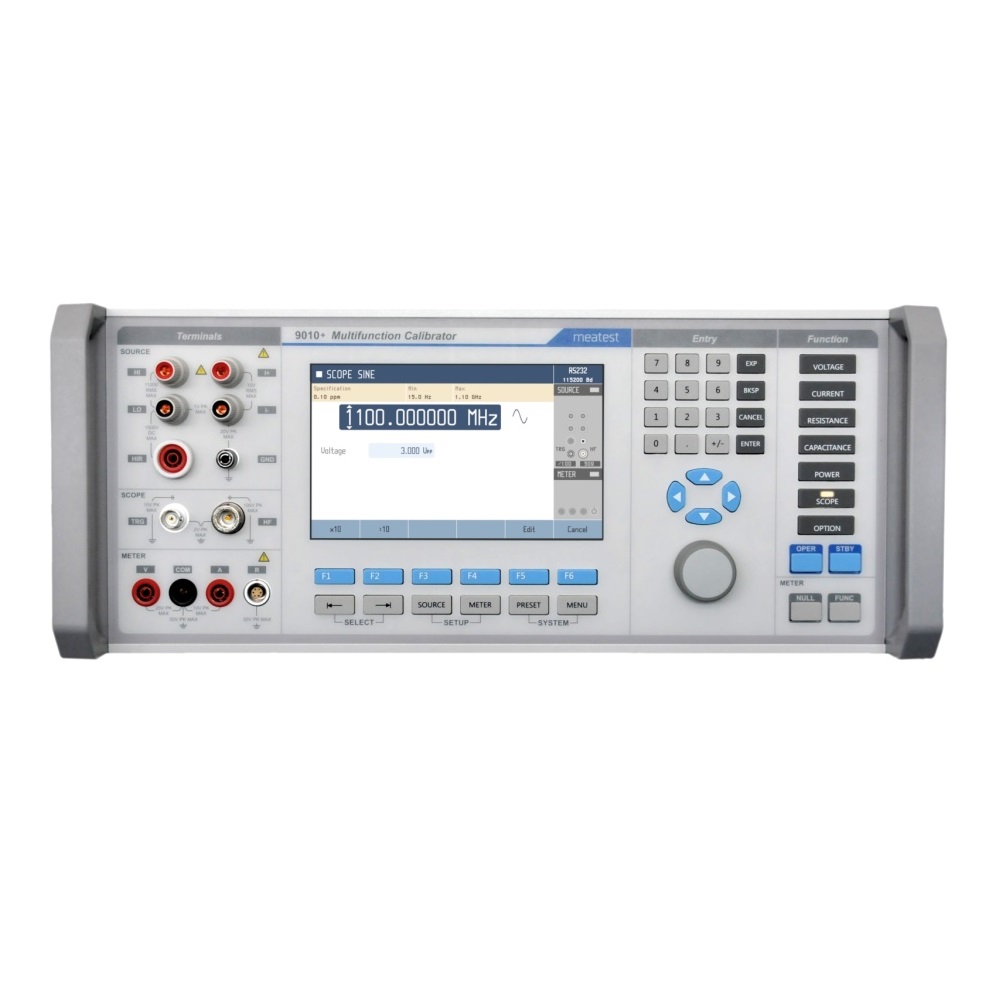

MEATEST 9010+ Multifunction Calibrator (0-1050VDC; 1mV-1050VAC)

DC voltage: 0 - 1050 V

± 10 ppm / year

AC voltage: 1 mV - 1050 V, 15 Hz - 300 kHz

sinusoidal & non-sinusoidal waveforms, harmonics

± 160 ppm / year

DC current: 0 - 30 A (1500 A with 140-50 Current Coil)

± 100 ppm / year

AC current: 10 uA - 30 A, 15 Hz - 10 kHz (1500 A with 140-50 Current Coil)

sinusoidal & non-sinusoidal waveforms, harmonics

± 400 ppm / year

DC Power & Energy: 40 uW - 30 kW (1575 kW with 140-50 Current Coil)

± 160 ppm / year

AC Power & Energy: 40 uW - 30 kW, 15 - 1000 Hz (1575 kW with 140-50 Current Coil)

50 harmonic products, voltage from current

± 670 ppm / year

Resistance: 0 Ω - 1.1 GΩ, resolution 6½ digits

± 15 ppm / year

Insulation Resistance: 100 kΩ - 100 GΩ

rated up to 1.5 kV

Capacitance: 800 pF - 120 mF, resolution 6½ digits

± 0.25 % / year

Temperature: TC B,C,D,E,G2,J,K,M,N,R,S,T with cold junction compensation

RTD ± 0.03°C / year

Frequency: 0.1 Hz - 1100 MHz

± 2.5 ppm / year

GENERAL DATA

Warm-up time: 30 minutes

Operating temperature: +13 °C – +33 °C

Storage temperature: -10 °C – +55 °C

Temperature coefficient: 10 % of accuracy / °C outside TREF

Max relative humidity: 70 %

Power supply: 115/230V - 50/60 Hz, 450 VA max

Dimensions (W x H x D): 435 x 175 x 620 mm

Weight: 24 Kg

Interfaces: RS232, IEEE488, USB, Ethernet
