Manufacturer: Manncorp
Model: Magic M
Count SMDs as small as 01005 chips.

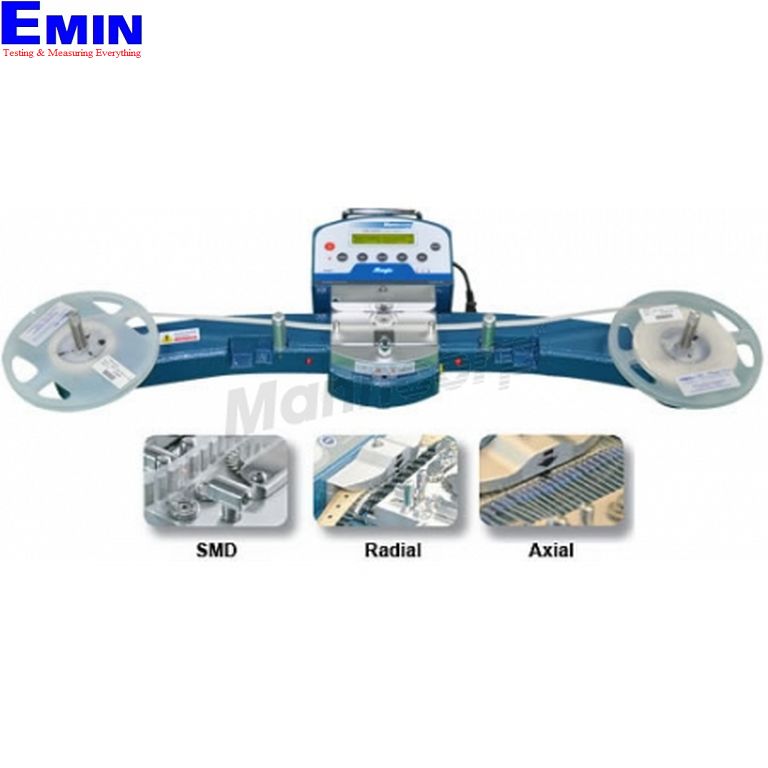

Magic M is the most affordable manual component counter available to cover the full range of taped components. The standard unit handles SMDs, including chip components down to 0201, as well as axial and radial parts on tape widths from 4 mm to 72 mm. An adapter with 2 mm pitch is available for 01005 chips. All standard 7" and 13" tape reels can be used.
Like its motorized counterparts, the Magic M can be set to count out pre-set quantities of parts, making it a time saver for kitting or for component distributors who sell parts on cut tape strips.
Setup and changeover is fast and simple. For SMD parts, an included adapter is simply placed on the unit and tightened and SMD tape is fed through it from the right to the reel on the left. Set the pitch and go. For axial and radial components, remove the adapter and set the width of the guide bracket.
A bar code printer and scanner or ribbon label printer can be added to further increase efficiency. Label data includes company name, date, time and quantity.
Magic M, weighing only 16 lbs, features a built-in carrying handle for easy portability—take the counter wherever it is needed. The entire unit is only 32" x 10" x 4", making it easy to find room for on a bench or tabletop. It is long-life rechargeable battery eliminates the need to locate the unit near an electrical outlet.
MAGIC M Parts Counter - Specifications
| Power Source | Hand crank |
| Component Types | SMDs, Axials & Radials |
| Adapter for 01005 chips | Optional |
| Count Qty. Memory | Yes |
| Auto Alignment | Yes |
| Date/Time Set | Yes |
| Foot Control Port | Yes |
| Quantity Preset | Yes |
| Alarm | Audible, when preset quantity is reached |
| Counting Direction | L to R std. R to L Optional |
| SMD Pitch Setting | Yes |
| Reel Sizes | 7" & 13" |
| Max. Reel Width | Up to 72 mm |
| Count Range | 99,999 |
| Co. Name on Printouts | Yes |
| Anti-static Plug & Connector | Yes |
| 110-220V / 50-60Hz Switching | Yes |
| DC Adapter | Yes |
| RS-232c & USB Ports | Yes |
| Ribbon Printer (optional) | Label 2.36" W x .67" L (60 x 17mm) |
| Bar Code Printer | Optional |
| Power | AC 110V(60Hz) Optional: AC 220V(50Hz) |
| Rechargeable Battery | Yes - Charge 48 hours before first use. Charge time thereafter is 12 hours. Operating intervals between charges is ~ 20 hours |
| Dimensions | 805 W x 260 D 100mm H (32" x 10" x 4") |
| Weight | 8.3 Kg (18.3 lbs.) |
