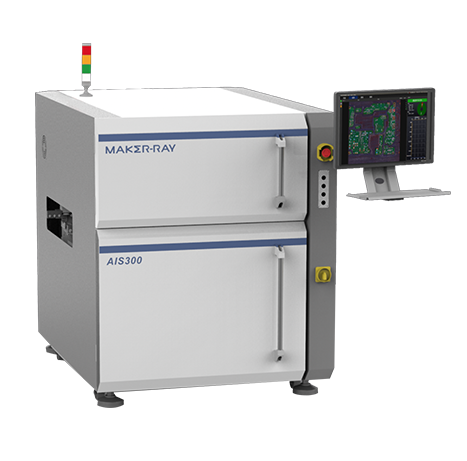

Category: Item: AIS300 / AIS301
PCBA Spec: - Size: 50 x 50mm – 500 x 480mm (/ 50 x 50mm – 350 x 350mm)
- Thickness: 0.3mm-7mm
- Component height: Top: 150mm
Bottom: 25mm
- Warping extent: <4mm
Vision System: - Camera: 5MP,Color,CCD
- Light: RGB tower light (RGB + W optional)
- FOV: 45 x 37 mm
- Accuracy: 20um/pixel
Inspection: - Mounting defect: Missing, Rolling, Shifting, Damage, Skew, Redundant, Foreign matter
- Solder defect: Excess, Insufficient, Bridge, No foot, Missing solder, Non-wetting
- Additional: Bar code/QR code reading, OCR
- Algorithm: CNN algorithm, Image & color comparison, outline comparison, OCR
- Speed: 0.23sec/FOV (/0.2 sec/FOV)
Software: - OS: Ubuntu 14.04 LTS 64bit
- Function: Remote control, Gerber file loading, Training tool for new models
Hardware: - PC: CPU: intel i5 (/ CPU: Intel i5)
Graphics: Nvida GPU Speed Card (/ Graphics: Independent Graphics Card)
Memory: 12g DDR, 256G SSD (/ Memory: 12g DDR)
Network:1000M wired network card (/ Storage: 256G SSD)
- Display: 22’’ FHD LCD
- Motion: High-accurate Linear actuator (/ High-accurate screw)
- Dimension: 1100x1630x1350mm, 800kg (/ 1100 x 1630x1310mm, 600kg)
Else: - Power: AC220V,1000W
- Air: >0.5Mpa
- Work Environment: Temperature: 10 ~45`C, Humidity: 30 ~ 85%RH
