Display: LED Display
Temperature control range: 0oC to +100oC
Temperature stability: ± 0.5oC at 20oC
Temperature accuracy: ± 0.5oC at 20oC
Controller: PID control, PT100 sensor
Setting / display resolution: ± 0.1°C
Cooling capacity (Medium Ethanol): 1900 BTU/h @ 0°C
Pump capacity flow rate (L/min): 5.5 L/min
Hydraulic head: 2.5 meter
Pump capacity flow pressure (bar): 0.19 bar
Pump connections: 1/4” silicone tubing
Barbed fittings diameter (inner dia. / mm): 6.35 mm or 1/4”
Bath capacity: 10 L
Refrigerant: CFC free refrigerants-R134a
Operating temperature: +20°C~+40°C
Operating humidity: Max.80%
Rated voltage: 220V; 50Hz, 8A
Chamber material: 304 stainless steel
Bath inner dimension: (W x L x H) 9.25"x11.61"x5.90" (235x295x150 mm)
External material: Powder coating
Compressor: 1/4 HP
Dimension : (W x L x H) 13.39"x22.04"x26.38" (340x560x670 mm)
Weight: Approx. 110.2 lb (50 kg)
Safety device: ■ Self-diagnosed abnormality display
■ Electronic overheating thermal fuse protection in
increments of 0.1oC
■ Delayed resume compressor protection
Circulation volume: Cycles up to 5.5 L/min cooling system with delayed resume protection after power outage
Circulation type: Jet stream flow forced circulation, can be accessed through the outer loop
Power: 1000W

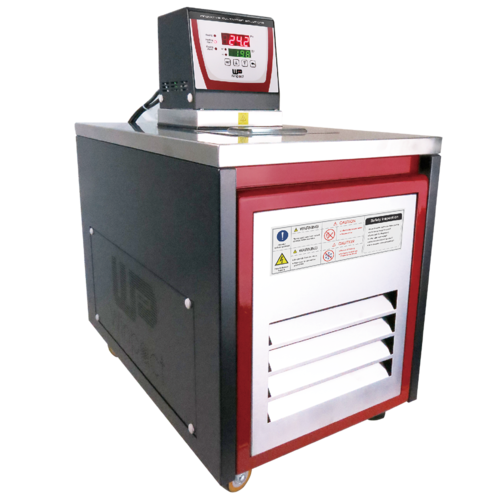

The Winpact Chiller series is Major Science’s newest addition to the bioprocessing technology portfolio to provide precise temperature control and excellent cooling performance for your fermentation needs and beyond. The recirculating chillers are compactly designed and require very little space; the built-on wheels offer an added bonus of mobility to any space-conscious labs. With a low procurement cost, it is your best option to stray away from costly tap water and is the perfect alternative for basic cooling needs.
