Controller: Digital microprocessor controller
Motor: Brushless motor
Power: 100W
Pump Speed / Increment: 20 - 300rpm /1rpm
Max. Pump Speed: 300rpm
Flow Range **: 8 - 3,272ml/min
Number Of Rollers: 2
Number Of Peristaltic Pumps: 1
Operating Temperature: Ambient to 40 °C
Dimension (WxLxH): Approx. 9.5”x13.3”x 6.6” (240x338x167mm)
Material: Painted iron metal
Weight: Approx. 13.4lb (6.2kg)
Rated Voltage: 100V-240V~
Program: 2-step Program (running & ceasing); Max. of timer: 99 (hr) : 59 (min) : 59 (sec)
Auto Resume Function: Yes
** The flow range is subject to the silicone tube that used. Please see Silicon tubing specifications table for reference.

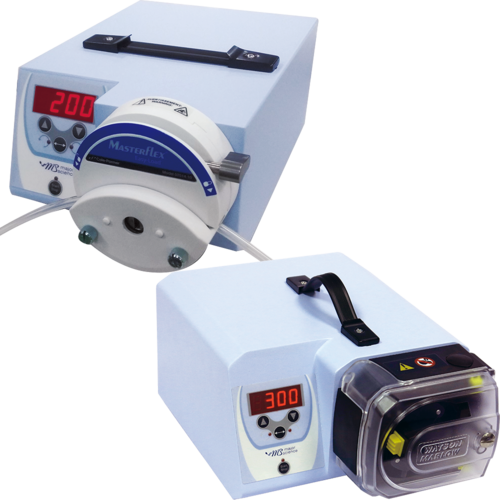

MU-D Peristaltic Pump series is ideal for a variety of applications, which include filtration, circulation, sampling, chemical spraying, dispensing, transferring, feeding and filling. The easy-to-use pump head design accomadate several different silicon tubing sizes. This provides a great flexibility for a wide range of flow rates to be utilized when connecting with different sizes of tubings.
The MU-D series is also reversible providing better convenience and flexibility to the user. The digital control provides high accurate rpm performance.
MU-D01 pump is a digital controlled mode with a solid 50W brushless motor, and MU-D02 is designed with a higher horsepower, 100W for higher volume demands required.
MU-D03 pump is the most powerful pump in this series which packs with powerful pump head, allows the flow rate to up to 3,272ml/min with thicker tubing (1.6mm). Select the appropriate model for your lab with economical yet powerful enough peristaltic pump.
