- Output Voltage / Inc: 5 – 500 / 1V
- Output Current / Inc: 1 – 800mA / 10mA
- Power: 300W
- Rated Voltage: 100-240V~: 47-60Hz
- Type of Output
Voltage or Current with automatic crossover
When target constant mode is set, system automatically adjusts the two other parameter to maximum to allow constant run (later could be changed by user)
- Program Storage: 30 programmed files
- Program Multi-Step: Up to 6 steps
- Editable Program Function
Typical running conditions program
Manual editable program
- Display 2.4” TFT
- Control: Microprocessor controller
- Safety Device
No Load detect
Leakage detect
Over temperature protection
Over load detection
Sudden load change detection(could be enabled by proper setting)
Shrouded plugs and sockets
- Timer
Constant: 9999 (min) with alarm/ Continuous
Program: 999 (min) with alarm/ Continuous
- Crossover: Yes
- Stackable: Yes
- Automatic Recovery After Power Failure: Yes
- Operating Temperature: 4℃~ 40℃
- Material: PC housing and flame retardant ABS faceplate
- Dimension: Approx. 8.5"x13.2"x4.1" (215 x 335 x 104 mm)
- Weight: Approx. 4.6lb (2.1 kg)

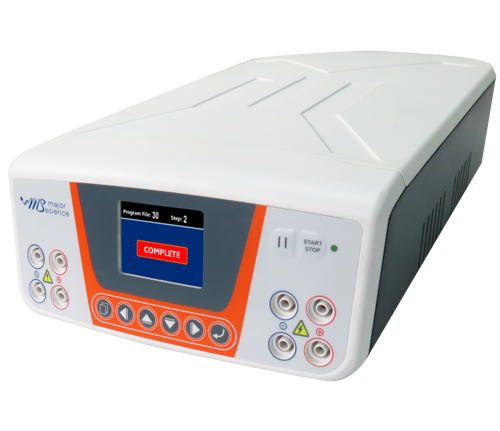

Major Science offers 3 models of power supplies constructed with microprocessor controller and 4 pairs of outlet terminals which covers the broadest range of application in general laboratory. The microprocessor control can perform either continuous or timed output, and user is able to pause and resume anytime without resetting the timer.
MS Lively Power Supply is power enough to perform horizontal and vertical electrophoresis as well as two dimensional electrophoresis SDS-PAGE applications. In addition, it can operate with a fully programmable mode and offer up to 6 multi-step setting conditions. The 2.4” TFT-LCD colored screen also allows you to see all the running/setting conditions while operating. For those beginners in electrophoresis, the built-in data for some typical running condition could be extremely helpful. All 3 models are designed with great safety features to ensure safety of the lab and experiment.
