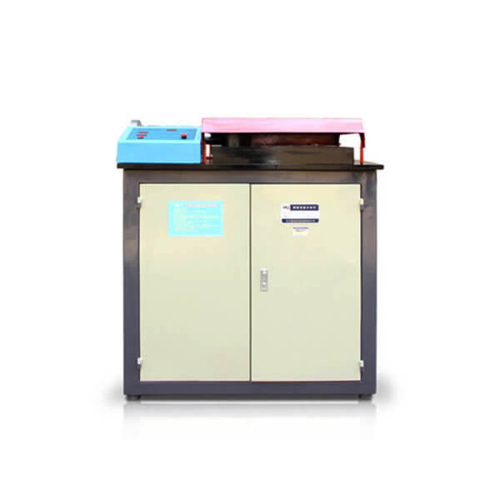

Ludatest GW-40C Cold Bend Testing Machine (Ф6 - 40mm)

Description:

GW-40C cold bend testing machine is an important test facility for steel and construction units to check the bending and bending properties of reinforcing bars. Bending tests on steel bars for reinforced concrete, bending the bar at 180° or to bend the same at 90° and then straighten if of at least 20°.

Specification:

Steel bar: Ф 6- 40mm

Bending angle: 0 -180

Main cylinder Dia.: Ф 580mm

Working disk speed: <3.7r/min

Power: 380V AC (optional 220V AC)

Motor power: 1.5kW

Machine weight: 700kG

Machine size: 1200*750*1000mm
