Test force range (stepless adjustable): 10N~10kN
Relative error of test force indication: ±1%
Keep the indication error when the test force is
long: ±1%F.S
Friction test range: 0~300N
Friction test error: ±2%
Spindle speed range (stepless adjustable): 100~2000r/min
Spindle speed error: ±10 r/min
Temperature control range of friction pair: At room temperature~200C
Temperature control error of friction pair: ±1C
Test time control range: 1 second to 99 hours
Spindle speed control range: 1 ~ 9999999 RPM
Installation dimensions: 1160mm×750mm×1640mm
The computer displays and records the curve of friction-time, temperature-time, test force-time
The net weight: 800kg
Test ball: 12.7mm
The power supply: 380V,.60HZ
Equipment introduction

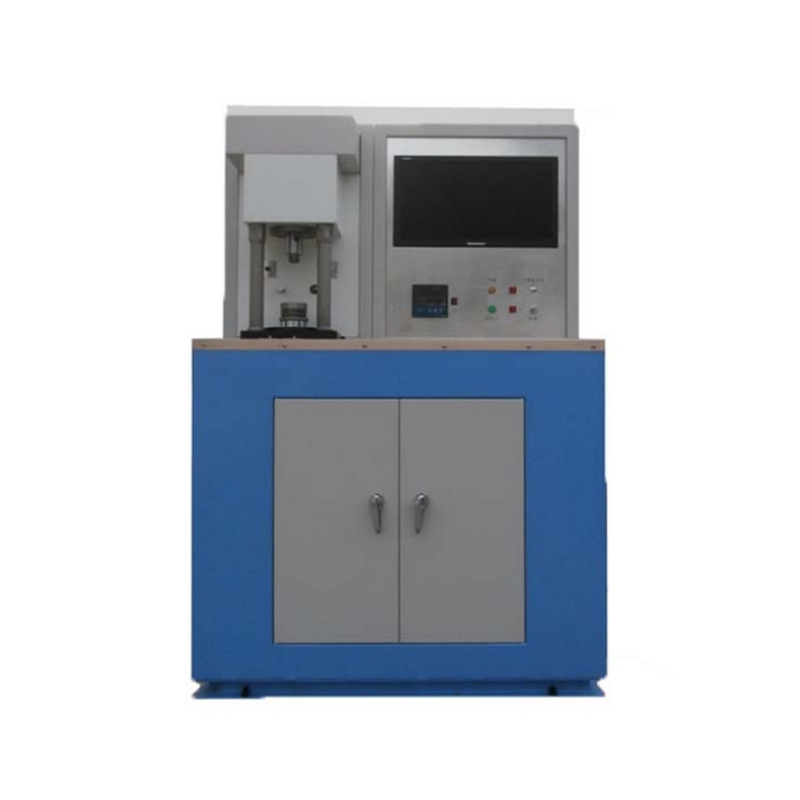

The M6610D four-ball friction tester is mainly in the form of sliding friction to evaluate the bearing capacity of lubricant under extremely high point contact pressure.There are three indexes including maximum no-bite load PB, sintering load PD and comprehensive wear value ZMZ.The machine can also be used for long time wear resistance test of lubricants and measurement of friction coefficient.When the computer is connected, the friction and temperature curves can be recorded.If special friction accessories are used, rolling friction test, simulated wear test between various materials, end wear test and rolling fatigue test of steel ball can also be carried out.Before the test load reaches the maximum no-card bite load PB, it can be completely judged that the maximum no-card bite load has not been reached according to the control software of the testing machine. When the load reaches the maximum no-card bite load PB, it can be determined by the display curve of the software that the load is the maximum no-card bite load PB.Thus precise measurements can be made with a microscope.Save a lot of time and material resources.And can edit the control program to load.
LR-M6610D microcomputer control four – ball friction wear testerFriction and wear testerLubricating oil friction and wear tester
Applicable standards of this machine:
GB/T12583-98 Determination of extreme pressure properties of lubricants (four-ball machine method)
GB3142-82 Determination of bearing capacity of lubricants (four-ball method)
SH/T0189-92 Test method for wear resistance of lubricating oil (four-ball machine method)
SH/T0202-92 Test method for extreme pressure performance of lubricating grease (four-ball machine method)
SH/T0204-92 Test method for wear resistance of grease (four-ball machine method)
SH/T 0762-2005| Lubricating oil friction coefficient measurement method (four-ball machine method)
ASTM D5183-2005 Test method for determination of friction coefficient of lubricating oil with a four-ball wear tester
In practical application, users can choose different determination methods and evaluation indexes according to different USES of lubricants.
