Use

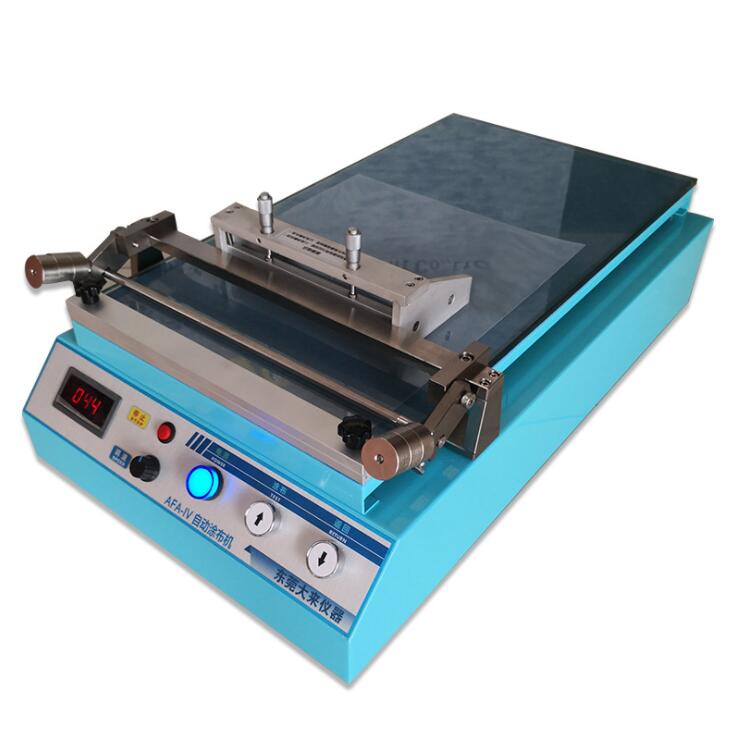

Small automatic coating machine, is in order to make the test personnel can easily coated a precise coating, reduce or eliminate in the coating process such as pressure on the coating speed and different error caused by human factors.The machine adopts the infinite variable speed motor, precise control coating rate, can be done automatically on the different substrate wet film coated motion, greatly improve the reproducibility of the coating.
Technical parameters:
1, the main material: stainless steel
2, motor power: 48 w 220 v, 50 hz
3, coating base size: 570 mm * 360 mm
4, effective film size: 380 mm x 300 mm (length * width)
5, the thickness of the coating specification: 6, 8, 10, 12, 15, 20, 25, 30, 40, 50, 60, 80, 100, 120, 100, 200 microns (optional)
Can be equipped with Japanese OSP line, the minimum thickness of 1.5 um.
6, coated rods specification: 12 mm in diameter and 400 mm long (or special customization)
7, coating rate: 0 ~ 2 cm/s CVT
8, appearance size: 570 * 370 * 370 mm (length x width x height)
9, heavy quantity: 20 kg
