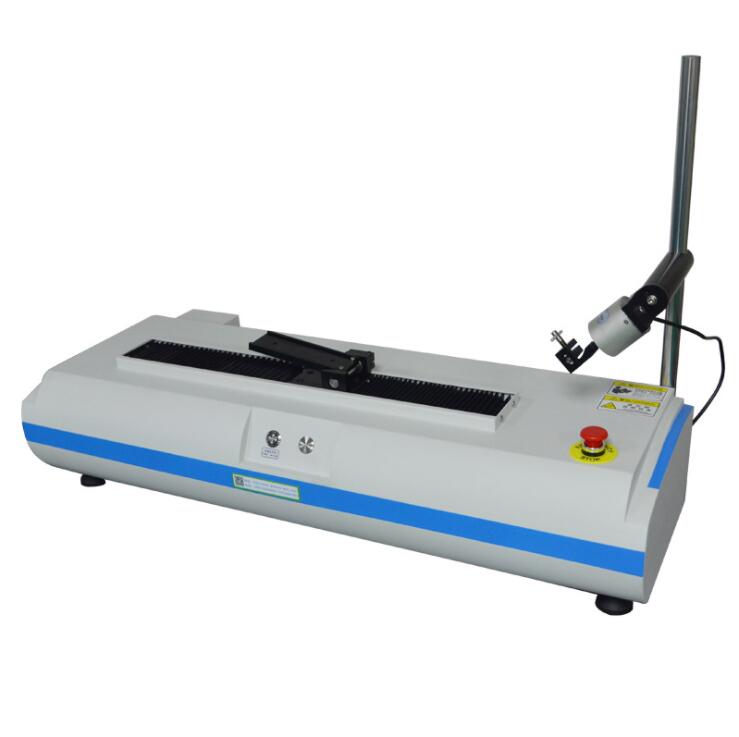

Scope of application
Suitable for adhesive tape, protective film, label, release film (paper) and other products to test the peeling performance, testing the adhesive strength of the adhesive material, anti-peeling performance, can do 180 degrees peeling, 90 degrees peeling test.
Specification
Capacity: 1, 2, 5, 10, 20kg optional
Accuracy level: 0.5 level
Test low limit: 0.3g
Test speed
Speed: range from a slow 100mm/min to a fast 25m/min
The Angle: 90° to 180° for a variety of angles
Return speed: 10m/min
Power resolution: 0.001g
Displacement resolution: 0.001mm
Effective stroke: 400mm
Control methods: Computer control
Outside size: W 1000mm×D 500mm×H 400mm
Power: 220VAC±10% / 50Hz
Sampling rate
The pick point frequency can reach 1000 times/s (and there are multiple frequency bands available Choose)
