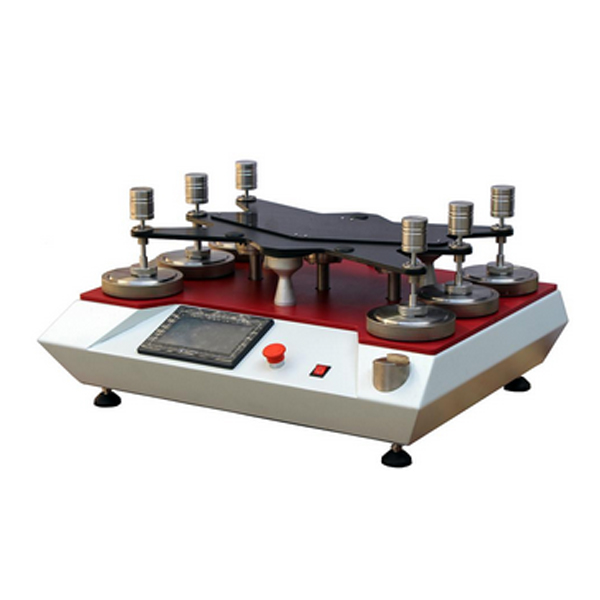

Scope of application :
Used for measuring wear resistance, pilling performance and surface changes of woven fabrics, knitted fabrics, woven fabrics, coated fabrics and non-woven fabrics.
Technical Parameters:
1. Number of stations: 6
2. Counting range: 0 ~ 999999 times
3. Maximum dynamic range: horizontal: 60.5 + 0.5mm vertical: 24 + 0.5mm
4. Pressure quality:
A, holder: 198 + 2 2g
B, material specimen weight: 395 + 2 2g
1. Sample weight of furniture decoration: 594 + 2 2g
D, B type clamping device: 155, plus or minus 1 g
E, stainless steel butterfly plate: 260 + 1g
5. Effective friction diameter of grinding block:
Type A 198 g (1.96 N) friction head Φ 28.65 + / – 0.05 mm
Friction type B 155 g (1.52 N) Φ 90 + / – 0.10 mm
6. The relative speed of the clamping device and the grinding table: 50/2r/min
7. Quality of sample weight: 2385 + 10g
8. Dimensions: 885 x 600 x 410mm
9. Power supply: Ac220V 50Hz 500W
10. Weight: 150kg
