Drop mobile phones at the same time: 2
Allowable weight: 2kg(Max)
Drop height: 60-150mm
Test speed range: 6 ~ 20 times /min
PLC controller and touch screen: 1 set
Machine size: W550*H750*D650mm
Machine weight: about 40kg
Air source: 0.5mpa
Power supply: AC 220V or specified
Note: part of the electrical production and the main body for one
Five, mobile phone micro drop testing machine main configuration
touch screen: 1, PLC: 1
Up and down motor: 1 set (SMC)
Vacuum sucker: 1 (SMC)
4. Vacuum generator: 1 (SMC)
Overview:

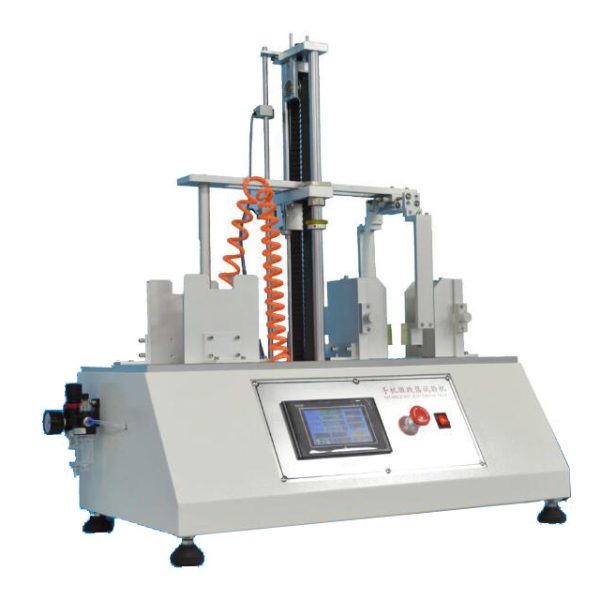

Mobile phone micro drop tester is suitable for mobile phone desktop drop durability test special detection equipment.
Structural advantages:
PLC programmable control, performance than pneumatic structure quality to be stable, low noise.
Technical specifications of mobile phone drop tester
purpose of mobile phone micro-drop tester:
This machine is suitable for mobile phone, telephone handset, intercom, MP3, CD, electronic dictionary and other small electronic consumer products for repeated drop test
Second, mobile phone micro-drop testing machine action principle
Motor drives the fixture (gas) finger down on the phone, rise, loosen the fingers, mobile phone into a free falling movement, the double-acting cylinder telescopic push phone first fixture can clamp the position, the motor drives the fixture (gas) finger down on the phone, rise, birch KaiQi fingers, mobile phone into a free falling movement, so until the setting number.
Features: can set the number of automatic stop
Drop surface material: aluminum, thickness of 12mm.The drop baffle is reset.
Prompt function: can set the number of keystrokes fixed value, can automatically stop the test.
This machine adopts Japanese shinon motor as the lifting and dropping driving source of mobile phone, which can be used for a long time.Can achieve mobile phones and other products repeatedly fall, in order to test the impact resistance of products falling from a certain height;
Due to the use of pneumatic components and autocratic control, greatly improve the test speed and consistency;Liquid crystal touch control panel +PLC PLC programmable controller is adopted for action program control.At the same time count, reached the set number of automatic stop test
