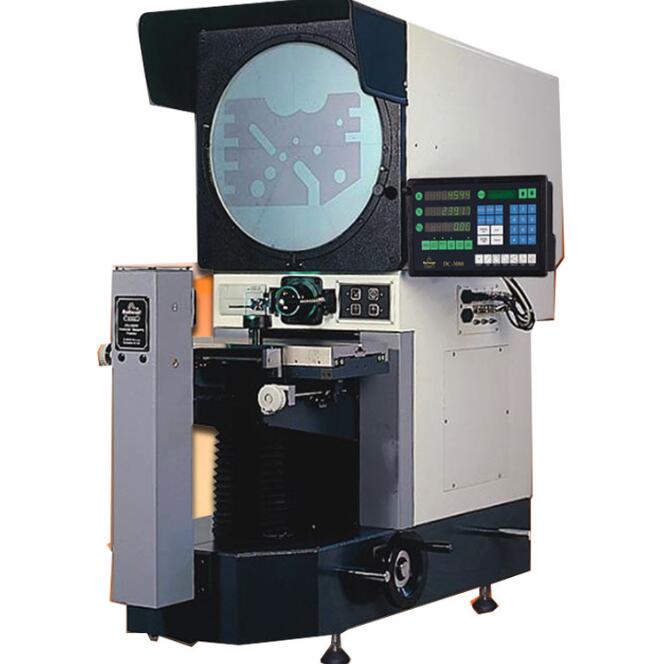

X axis Coordinate trip (mm): 200
Z axisCoordinate trip (mm): 100
Work table size(mm): 400×150
Swing range: ±15°
Digital resolution(μm): 0.5
Error value(μm) X, Y axis: (2.5+L/100). Z axis: 3.5+L/50 (LIs the length of the measured object unit: mm)
X axis Coordinate trip(mm): 75 (focusing)
Weight(kg): 160
Size(mm): 1090×830×1010
Projection screen
Size(mm): Ф 300 Ф
Rotation range: 0~360°
Rotational resolution: 1’ or 0.01°
objective
magnification: 10× (Optional)| 20× (Optional)| 50× (Optional)|100× (Optional)
object field (mm): Ф30| Ф15| Ф6| Ф3
work distance (mm): 77.7| 44.3| 38.4| 25.3
Data processing system: DC-3000 multi-function digital display table, full English display, can do multi-point sampling, coordinate rotation. Point, line, circle, distance, Angle measurement
Instrument lighting: transmission: 24V/150W halogen lamp. reflect: 21V/150Whalogen lamp
Equipment accessories: Micro printer (optional), optical edge finder (optional), M2D-CPJ software (optional), etc.
Equipment power: AC 100-240V 50/60Hz
Rate of power: 400W
