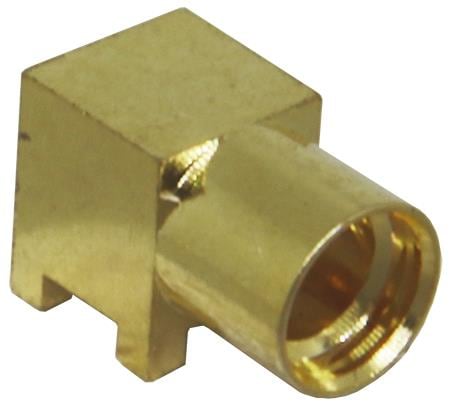

Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: MMCX
Body Style: Right Angle
Body Finish: Nickel
Orientation: Right Angle
Unit Weight: 875.596 mg
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500 Min
Insertion Loss: 0.3 dB max at 1GHz
Mounting Style: SMD/SMT
Voltage Rating: 170 VRMS
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 6 GHz
Termination Style: Solder
Contact Termination: Solder
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
