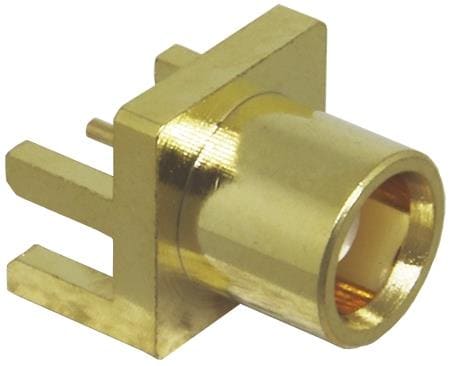

Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: MCX
Body Style: Straight
Body Finish: Nickel
Orientation: Straight
Unit Weight: 1.254 g
Body Material: Brass
Mating Cycles: 500 Min
Insertion Loss: 0.1 dB max
Mounting Style: Edge Launch
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 6 GHz
Termination Style: Solder
Contact Termination: Solder
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
