Gain: 3.5 dBi, 4.0 dBi, 3.75 dBi, 3.0 dBi
VSWR: 4.0, 3.2, 2.5, 2.5

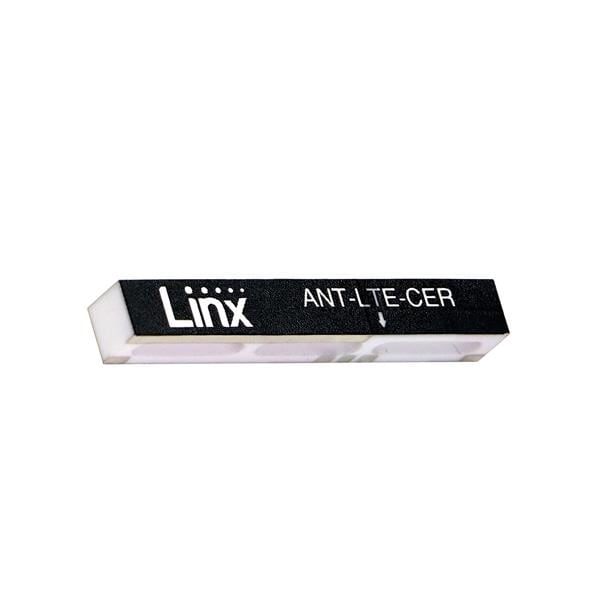

Style: Ceramic
Width: 5 mm
Height: 5 mm
Length: 37 mm
Bandwidth: 262 MHz, 460 MHz, 100 MHz, 200 MHz
Impedance: 50 Ohms
Wavelength: 1/4 Wave
Application: Cellular, LTE, CAT-M1, NB-IoT, 4G, 3G
Unit Weight: 4.529 g
Polarization: Linear
REACH - SVHC: Details
Mounting Style: PCB Mount
Number of Bands: 4 Band
Center Frequency: 829 MHz, 1.94 GHz, 2.35 GHz, 2.6 GHz
Mechanical Style: Chip
Ground Plane Size: 45 mm x 120 mm
Maximum Frequency: 2.7 GHz
Minimum Frequency: 698 MHz
Termination Style: SMD/SMT
Protocol - Sub GHz: IoT
Protocol - WiFi - 802.11: WLAN, WiMAX
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, CBRS, DCS, PCS
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
