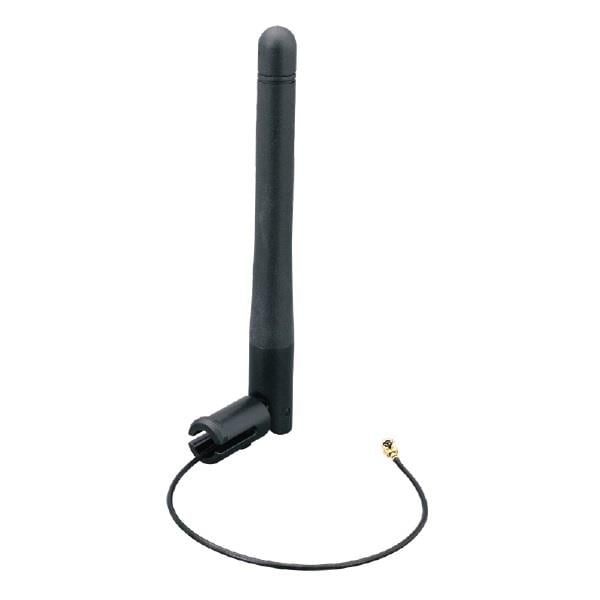

Gain: - 0.8 dBi, - 2.5 dBi
VSWR: 1.5
Style: Tilt/Swivel
Length: 105 mm
Diameter: 9.4 mm
Impedance: 50 Ohms
Cable Type: 125 mm RF1.13
Wavelength: 1/2 Wave
Application: Single Band, Dual Band, ISM Applications, IoT Devices, Smart Home Networking, Sensing, Remote Monitoring, U-NII, Gateways
Unit Weight: 9.419 g
Cable Length: 125 mm
Polarization: Linear
Power Rating: 10 W
Mounting Style: Snap In
Electrical Type: Dipole
Number of Bands: 2 Band
Center Frequency: 2.443 GHz, 5.5 GHz
Mechanical Style: Whip
Maximum Frequency: 5.85 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM
Antenna Connector Type: MHF1 / U.FL
Protocol - WiFi - 802.11: 802.11 b/g/n,/ac, WiFi 4, WiFi 5, U-NII
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 20 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
