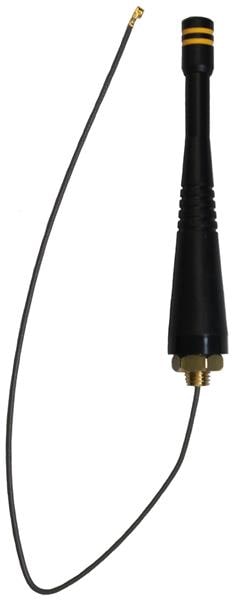

Gain: 1.8 dBi
VSWR: 1.9
Style: Straight
Length: 80 mm
Diameter: 14.5 mm
Bandwidth: 100 MHz
Impedance: 50 Ohms
Cable Type: 216 mm RF1.32
Wavelength: 1/4 Wave
Application: Low Power Wide Area Applications, ISM Applications, IoT Devices, Remote Control, Monitoring, Sensing, Smart Home Networking, Handheld Devices
Unit Weight: 19.422 g
Cable Length: 216 mm
Polarization: Linear
REACH - SVHC: Details
Mounting Style: Direct / Permanent Mount
Electrical Type: Monopole
Number of Bands: 1 Band
Center Frequency: 916 MHz
Mechanical Style: Whip
Ground Plane Size: 102 mm x 102 mm
Maximum Frequency: 965 MHz
Minimum Frequency: 865 MHz
Termination Style: MHF / U.FL Plug
Protocol - Sub GHz: RFID, ISM
Antenna Connector Type: MHF / U.FL
Protocol - WiFi - 802.11: LoRaWAN, Sigfox
Maximum Operating Temperature: + 90 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
