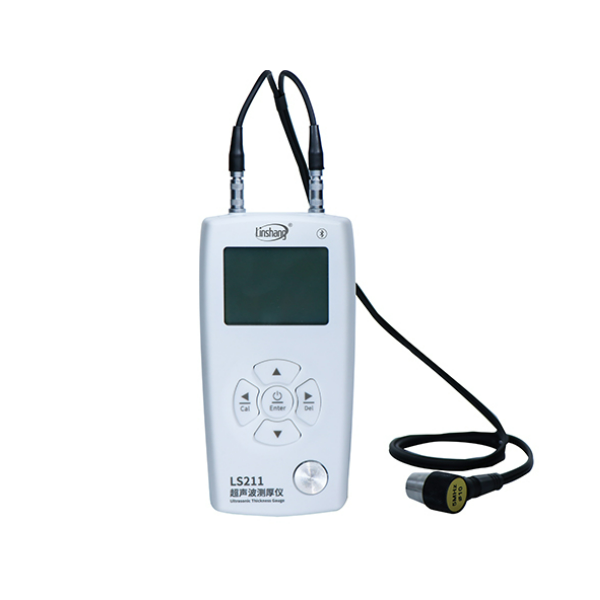

Host Parameter
Resolution:
0.8-10mm:0.001mm
10-100mm:0.01mm
100-600mm:0.1mm
Sound Velocity Range: 1000~9999m/s
Display: 240 * 160 dot matrix LCD
Unit: mm/inch
Power Supply: 2pcs of 1.5V AAA alkaline battery
Host size: 142 * 72 * 28 mm
Weight: About 230g
Operation Temperature Range: -10~50℃，0~85%RH（No condensation）
Storage Temperature Range: -10~60℃，0~85%RH（No condensation）
5MHZφ10 Probe
Minimum measuring area: φ10mm
Probe size: φ18*26mm
Measuring Range (45#steel): 0.8-350mm
Accuracy (H is the standard value):
H＜10mm:±0.05mm
H≥10mm:±0.5%H
Pipe measurement lower limit (45# steel): φ20*3mm
Exposure temperature: -10~60℃
7MHZ PT-06 Probe
Minimum measuring area: φ6mm
Probe size: φ15*25mm
Measuring Range (45#steel): 0.75-80mm
Accuracy (H is the standard value):
H＜10mm:±0.05mm
H≥10mm:±0.5%H
Pipe measurement lower limit (45# steel): φ20*2mm
Exposure temperature: -10~60℃
2MHZ ZT-12 Probe
Minimum measuring area: φ12mm
Probe size: φ18*28mm
Measuring Range (45#steel): 3-200mm
Accuracy (H is the standard value):
H＜10mm:±0.1mm
H≥10mm:±0.5%H
Pipe measurement lower limit (45# steel): φ30*4mm
Exposure temperature: -10~60℃
5MHZ GT-12 Probe
Minimum measuring area: φ12mm
Probe size: φ43*48mm
Measuring Range (45#steel): 3-200mm
Accuracy (H is the standard value):
H＜10mm:±0.05mm
H≥10mm:±0.5%H
Pipe measurement lower limit (45# steel): φ30*4mm
Exposure temperature: -10~500℃
