Flow Rate: 1 CFM
Sampling Methodology: Impaction Principle
Impactor Head: 316L SS with 113 holes, 19m/s, d50: 1.2μm
Communication Protocol: RS-485 Modbus
LED Indicators: Power, Flow, Sampling
User Interface: Manual Start/Stop; Control Software (LMS Express)
Communication Connectors: Switch: Liquid-tite cord grip; Controller: RJ45
Sample Outlet Connection: 1/4“ Barb
Vacuum Requirements: 16 in HG
Power: 24 VDC

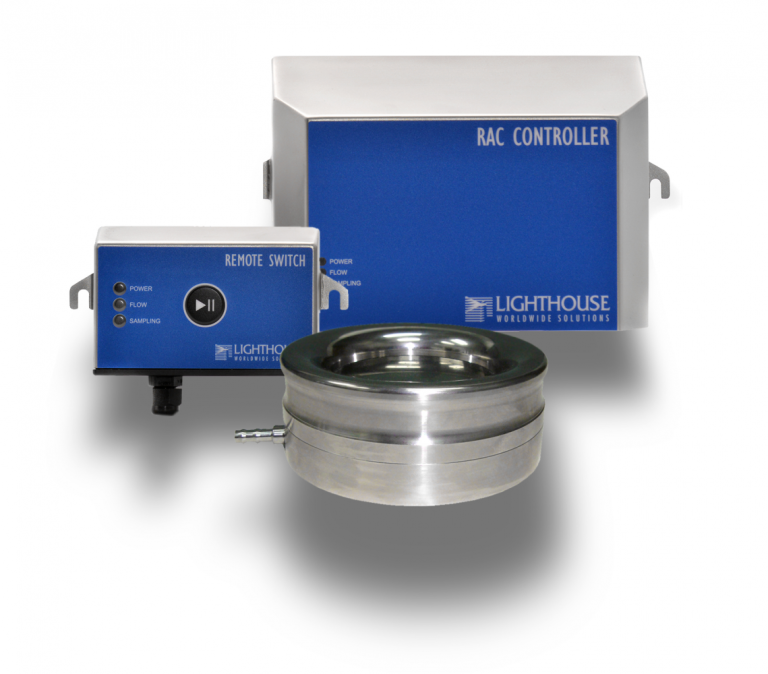

Dimensions Impactor: Diameter: 4.41”(11.20 cm), height 2.1“ (5.33 cm)
Dimensions Switch: 5.8”(w) x 2.7 (h) x 1.0”(d) [15 x 6.9 x 2.5 cm]
Dimensions Controller: W 8.0“ (w) x 5.0 (h) (20.32 cm), H 5.0”(12.7 cm), D 3.0“ (7.62 cm)
Weight Impactor: Impactor: 4.4 lbs (2.00 kg)
Weight Switch: Switch 0.59 lbs (0.27 kg)
Weight Controller: Controller: 2.6 lbs (1.18 kg)
Operating: 50° F to 104° F (10° C to 40° C) / 20% to 95% non-condensing
Storage: 14° F to 122° F (-10° C to 50° C) / Up to 98% non-condensing
Includes: Power supply, sample tubing
Optional: Printed installation guide; LMS Express
