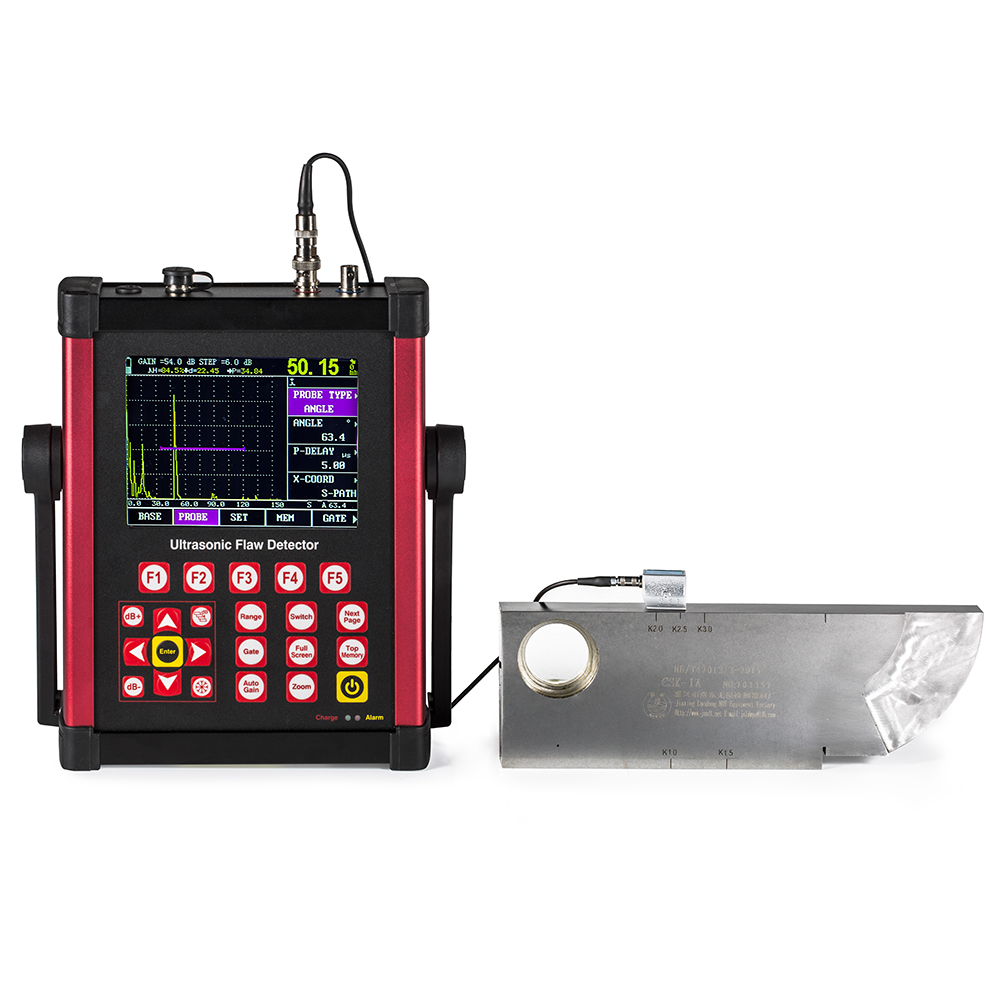

Leeb UEE953 Ultrasonic flaw detector (0-6000mm,20MHz)

Operating Frequency: 0.5MHz～20MHz

Scan Range(mm): 0-10000mm

Velocity Range（m/s）: 100～20000

Vertical linearity error: ≤2%

Dynamic Range: ≥35dB

Horizontal linearity error: ≤0.1%

Testing sensitivity: ≥65dB (Depth 200mm, Φ2 flat bottom hole)

Measuring channel: 500

Storage: 1000

Gain Range(dB): 0~130

Standard Probes: Straight probe: 2.5MHz, diameter 20mm, cable Q9-Q9

Angle probe: 4MHz, 60 degree, 8*9 mm, cable Q9-C5

Dimension: 240×185×55mm

Weight: 1.85kg

Optional Accessories: Optional probes, Cables, Calibration blocks, Coupling agent
