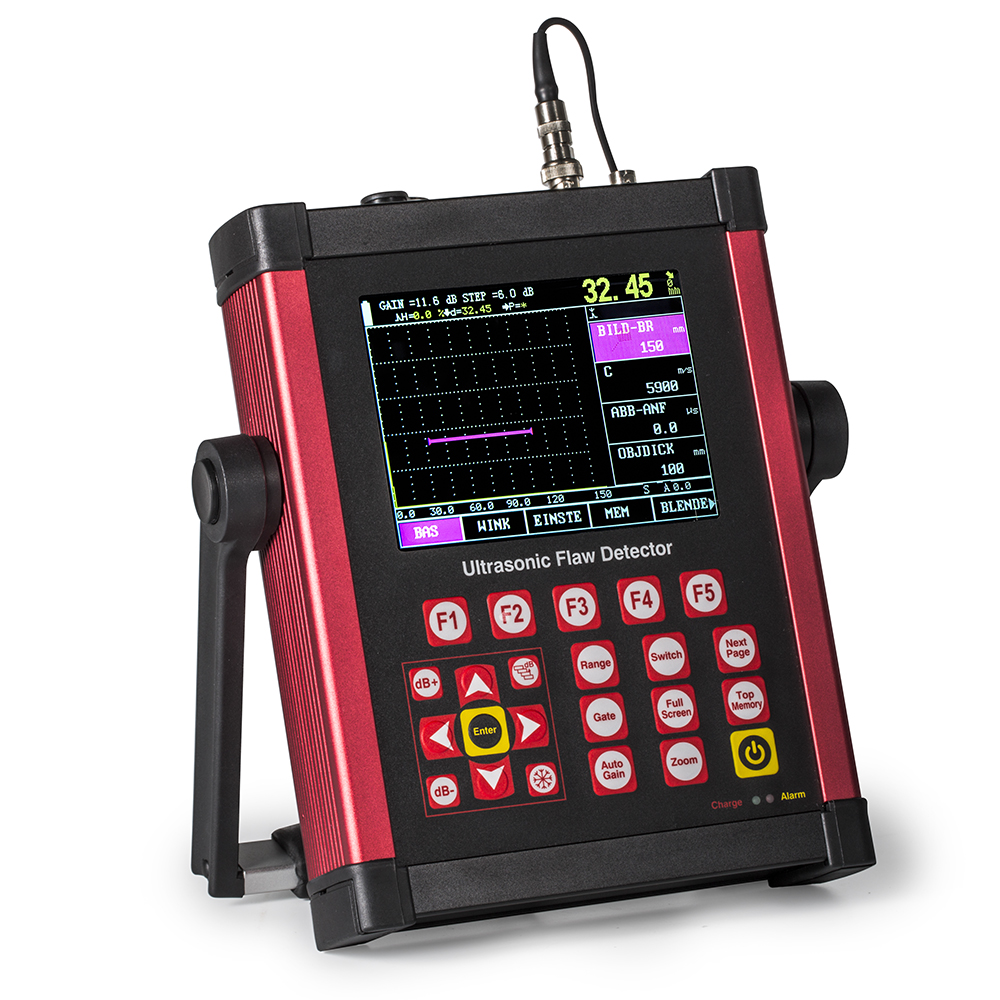

Leeb UEE952 Ultrasonic flaw detector (0-6000mm,20MHz)

Operating Frequency: 0.5MHz～20MHz

Scan Range(mm): 0-6000mm

Velocity Range（m/s）: 1000～15000

Vertical linearity error: ≤3%

Dynamic Range: ≥32dB

Horizontal linearity error: ≤0.2%

Testing sensitivity: ≥62dB (Depth 200mm, Φ2 flat bottom hole)

Measuring channel: 100

Storage: 500

Gain Range(dB): 0~110

Standard Probes: Straight probe: 2.5MHz, diameter 20mm, cable Q9-Q9

Angle probe: 4MHz, 60 degree, 8*9 mm, cable Q9-C5

Dimension: 240×185×55mm

Weight: 1.85kg

Optional Accessories: Optional probes, Cables, Calibration blocks, Coupling agent
