- Operative System: PC with Microsoft Windows® 2000 / XP SP2 / Vista / 7 32-bit Editions
- Bandwidth: 125 MHz
- Channels: 4
- Digital Pattern Generator: No
- Sample rate 1 GS/s
- Waveforms: Sine, Cosine, Triangle, Rectangle, Sawtooth, Ramp, Pulse, Sinc, Exponential,
Sweep, DC, Noise, From File, Arbitrary
- Arbitrary: 2 µHz to 125 MHz
- Sine: 3.7 mHz to 110 MHz
- Square: 2 µHz to 62.5 MHz
- Pulse: 2 µHz to 62.5 MHz
- Triangle/Ramp: 2 µHz to 31.25 MHz
- Sinc (Sin(x)/x): 2 µHz to 15.5 MHz
- Modulation: AM, FM, PM, ASK, SK, PSK
- External Trigger Output: TTL compatible into > 1 KΩ
- External Trigger Input: DC to 125 MHz
- External Clock: 0 MHz to 125 MHz
- Amplitude, 50 Ω Load (1 kHz): 0 V to +12 Vp-p
- Amplitude, Open Circuit: 0 V to +24 Vp-p
- Dimensions 2.4" x 12.8" x 7.2" (62 x 326 x 182 mm)
- Weight: 2.8 lbs (1.3 kg)
- Power: 100 ±10% to 240 ±10% VAC
- Included:

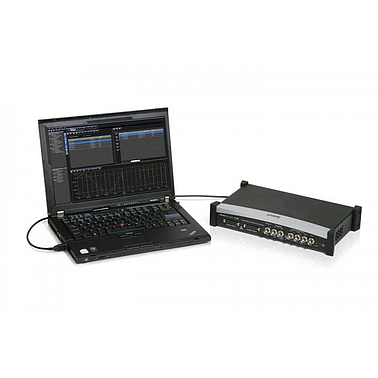

+ ArbStudio Hardware – 2 channel AWG
+ CD – Application Software and Operator’s Manual
+ USB Cable
+ Power Supply and Power Cord
+ Certifications and Performance Verification
