User RAM：64 MBytes
Button/Switch：START LED / ID Setting
User Interface：Power LED, Work / Pass / Fail LEDs on each site
Communication：USB 2.0 High Speed
Power：100V AC~240V AC
Frequency Range：50/60Hz
Power Consumption：75W(Max)
PIN DRIVERS：48 Pin Universal Pin-Driver x4
DUT SORCKET：DIP-48 ZIF(Zero Insertion Force) x 4
Dimension：37.2cm x 20.5cm x 4.5cm (Socket and START Key are not included)
Weight：2.1Kg
Supported Devices: NOR FLASH, SPI EPROM, EEPROM, MPU, MCU, CPLD, NV-RAM…etc.
File Type Supported: Binary/Machine Code, Intel HEX, TEK HEX Motorola HEX
PC System Requirement: Windows 7 / 8 / Vista / XP ( 32bits & 64bits )
Standard Accessories:
Main unit x 1
CD x 1 (Driver and user manual are included)
USB cable x 1
DC 5V/6A 30Wpower adapter x 1

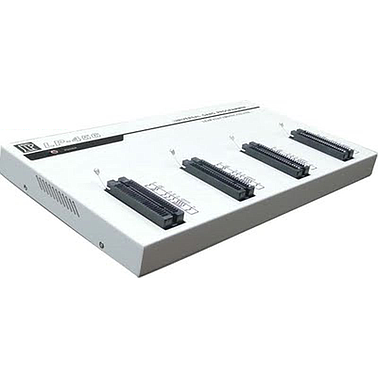

Universal Gang 4 Programmer
Universal Pin-driver of high performance
LP-456 is ultra-speedy universal 4x48 pin-drive concurrent production programmer. Youcan just use the general type adapters on the market for efficient multiprogrammingsolution.
Features
- Four independent universal programming pin-driverin one unit.
- Provides with DUT 75MHz bandwidth and < ±2.5nS signal skew. In addition to the high processing speed, you can verify whether the devices working frequency meet their specifications.
- Provides Hands-free Operation. The asynchronous and concurrent operation allows a chip to begin programming immediately upon insertion of chip. The operator just take off the finished device and inserts a new device.
- Provides mass-production-oriented software. There is used a Project file to control LP-456 to minimize the operator error. Moreover, it provides programming history and yield statistic for needs of production managements.
- Provides insertion test and contact check before programming.
- General type adapter can be used on LP-456, save money and convenience.
Specification
- User RAM：64 MBytes
- Button/Switch：START LED / ID Setting
- User Interface：Power LED, Work / Pass / Fail LEDs on each site
- Communication：USB 2.0 High Speed
- Power：100V AC~240V AC
- Frequency Range：50/60Hz
- Power Consumption：75W(Max)
- PIN DRIVERS：48 Pin Universal Pin-Driver x4
- DUT SORCKET：DIP-48 ZIF(Zero Insertion Force) x 4
- Dimension：37.2cm x 20.5cm x 4.5cm (Socket and START Key are not included)
- Weight：2.1Kg
- Operating Altitude：up to 5000m
- Operating Humidity：20％~70％ (non-condensing)
- Temperature：+5℃ ~ +45℃
Supported Devices
- NOR FLASH, SPI EPROM, EEPROM, MPU, MCU, CPLD, NV-RAM…etc.
File Type Supported
- Binary/Machine Code, Intel HEX, TEK HEX Motorola HEX
PC System Requirement
- Operating System：Windows 7 / 8 / Vista / XP ( 32bits & 64bits )
- Processor：Pentium 4 Above
- Memory：2 GB RAM Above
- Hard Disk：
- 500MB Above
- Buffer 2GB Above
- Communication：USB 2.0 HIGH SPEED
Standard Accessories
- Main unit x 1
- CD x 1 (Driver and user manual are included)
- USB cable x 1
- DC 5V/6A 30Wpower adapter x 1
Optional Accessories
- PLCC, JLCC, SDIP, SOP, VSOP, SSOP, TSOP, TSSOP, QFP, PQFP, TQFP, VQFP, BGA, uBGA, SON, WSON, QFN(MLF)..... adapters
