Specifications
Flow range: 0.0004-77 mL/min
Speed range: 0.1-80 rpm
Speed accuracy: 0.5%
Speed resolution: 0.1 rpm
Power supply: AC 100-240V, 50Hz/60Hz
Power consumption: < 10W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
External communication interface: MODBUS RS485
Ambient temperature: 0-40 °C
Relative humidity: < 80%
IP grade: IP31
Dimensions (L x W x H): 135mm x 96mm x 96mm (4.4 x 3.8 x 3.8 inch)
Weight: 0.8 kg (1.8 lbs)
| Drive type | Pump head | ch | Tubing size(mm) | Flow rate(mL/min) per channel |

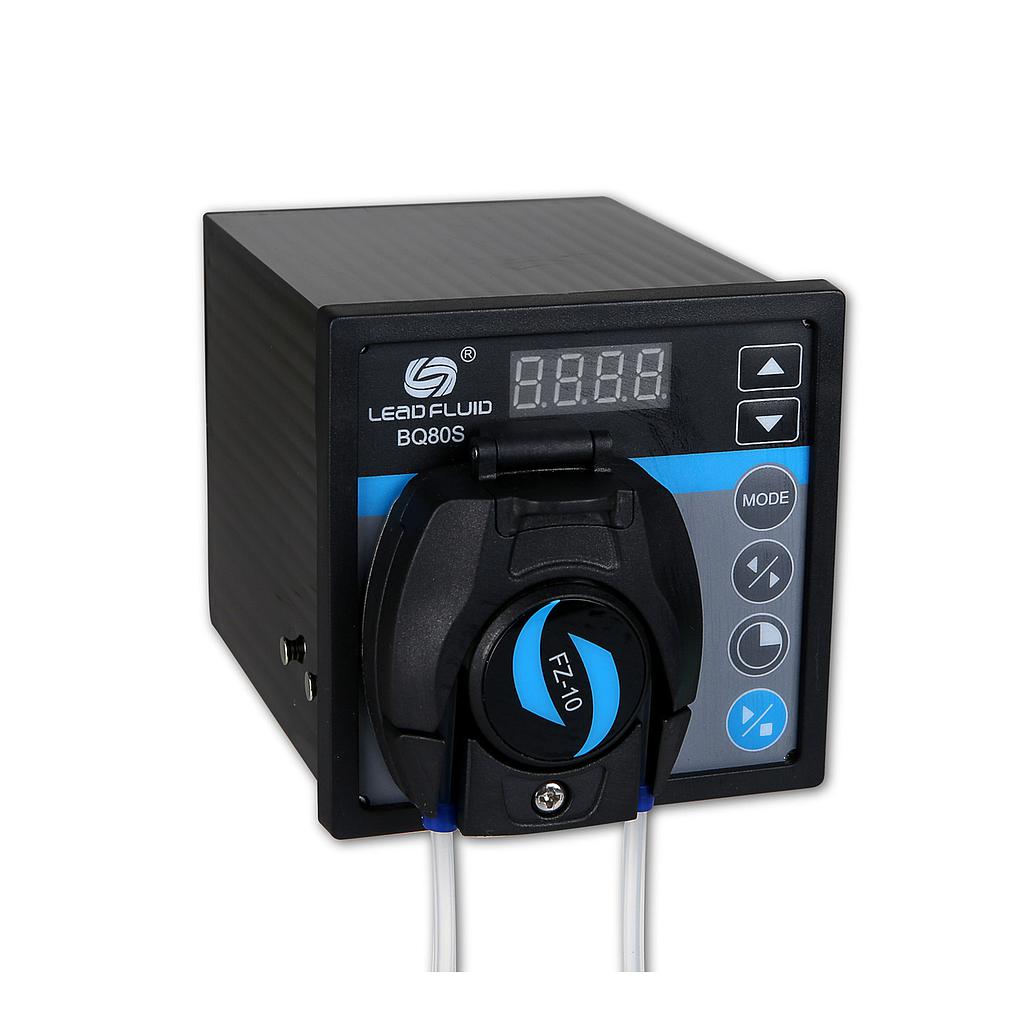

BQ80S (Pump heads notinter changeable) | FZ10 | 1 | WALL:0.8-1 ID:≤3.17 | 0.05-40 |
| DW10-1 | 1 | WALL:0.8-1 ID: ≤3.17 | 0.005-32 | |
| DW10-2 | 2 | WALL:0.8-1 ID: ≤2.54 | 0.005-19 | |
| DW10-3 | 3 | WALL:0.85-1 ID: ≤3.17 | 0.005-32 | |
| DW15-1 | 1 | 13#14#16#19#25# | 0.004-64 | |
| KD10-1 | 1 | WALL:0.85-1 ID: ≤3.17 | 0.004-32 | |
| KD10-2 | 2 | WALL:0.85-1 ID: ≤3.17 | 0.004-32 | |
| KD15-1 | 1 | 13#14#16#19#25# | 0.004-77 |
