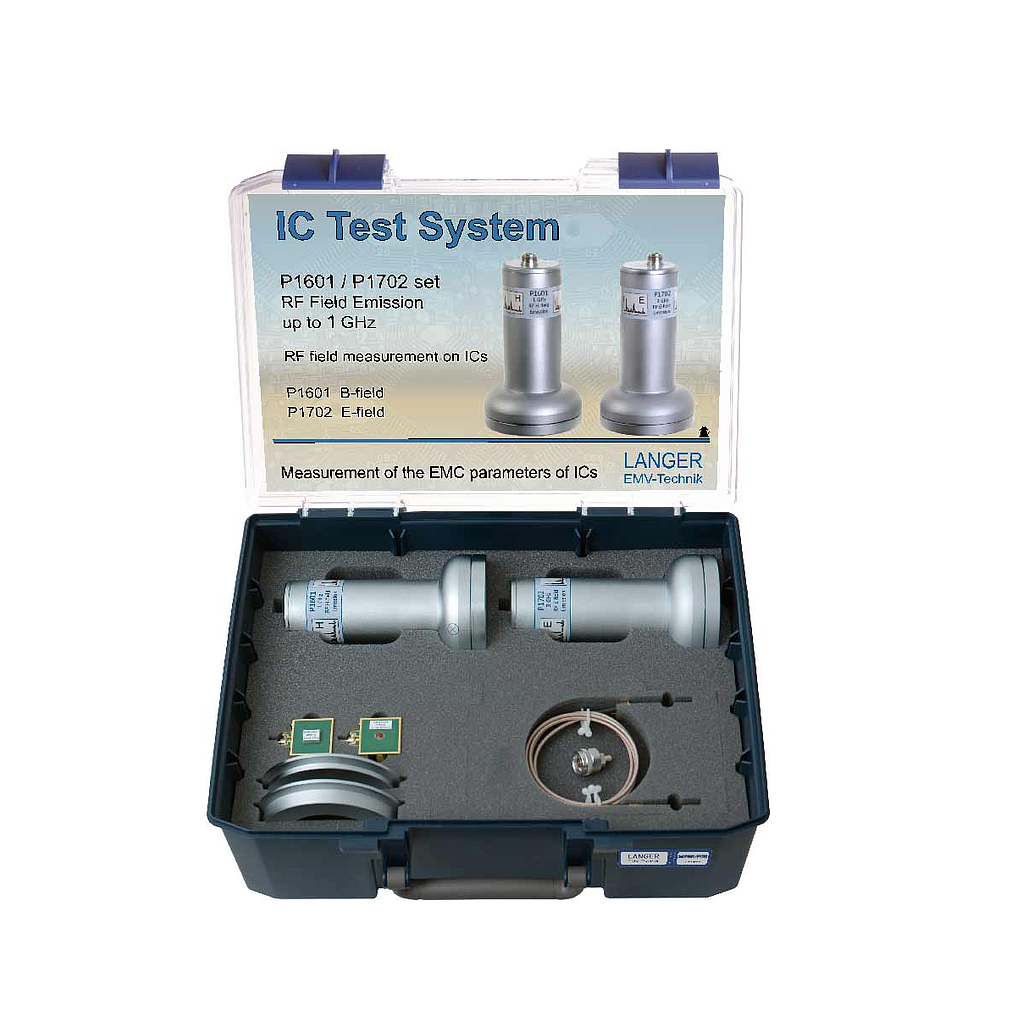

Scope of delivery
1x P1601, RF Magnetic Field Probe
1x P1702, RF E-Field Probe
1x CS-ESA set, ChipScan-ESA Software / USB
1x BPM 02, dB/dt Field Meter
1x EPM 02, dE/dt Field Meter
1x D70 h03, Spacer Ring, 3 mm
1x D70 h10, Spacer Ring, 10 mm
1x SMA-SMA 1 m, SMA-SMA Measuring Cable
1x SMA-SMB 1 m, SMA-SMB Measuring Cable
1x N-SMA, Adapter
1x P1600 / P1700 case, System Case
1x P1600 / P1700 m, P1602 / P1702 Set User Manual
Short description
The RF field emission probe set consists of a magnetic field probe and an E field probe. They are used to measure respective near fields, which are coupled out by an IC in operation/ a running IC. The measured data help to assess the seperate emission of an IC according to the types of field.
Measurements and all calculations are carried out with the software ChipScan-ESA.
