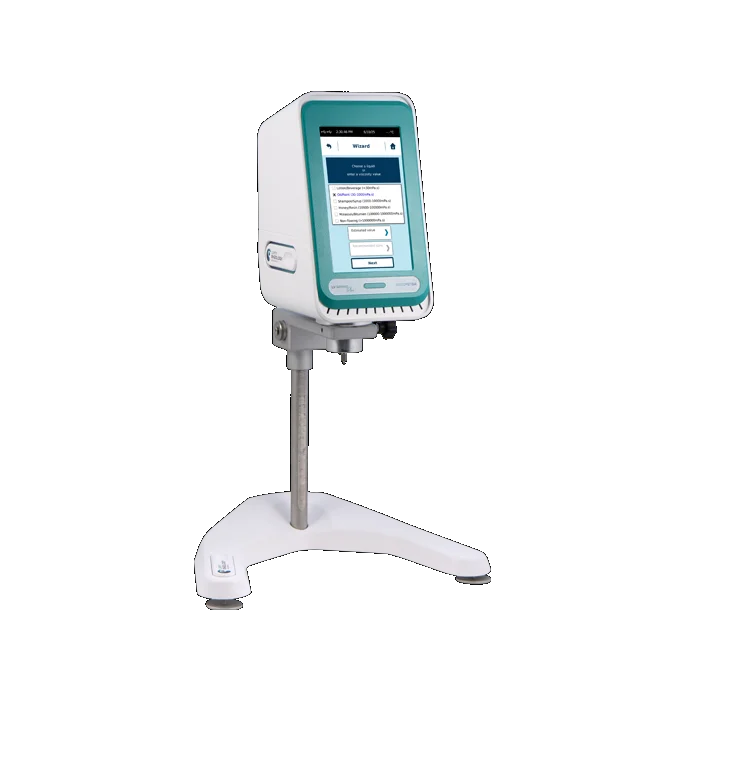

Type of instrument : Rotating viscometer with spring and 7' touchscreen
Viscosity range (mPa.s): 15 to 6M
Rotation speeds : Unlimited speed between 0.1 and 250 r/min
Torque range : 0.06737 mNm
Temperature : The LV SPRING has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C.
Accuracy : +/- 1 % of the full scale
Repeatability : +/- 0.2 %
Display : Viscosity ( cP/ Poises or mPa.s/ Pa.s) Speed- Shear gradient - Torque (%- mNm)- Stress- Time- Temperature- Electronic bubble level
Compatible accessories :
HELIPRO SPRING
Display for spindles
Protects touch screen
Verification oils
SMALL VOLUME KIT SPRING
THERMOCELL PACKAGE SPRING
Rheotex software
Security and confidentiality : An «operator» function allows you to enter a username for you instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.
Languages : French/English/Russian/Spanish/Turkish/German/Italian/Korean/Portuguese/Ukrainian
Compatible measuring systems : MS LV Spring, MS RV Spring, MS SV Spring, MS ULA Spring.
Compatible temperature control : EVA LR, EVA MS DIN, RT-1 PLUS. *only with adaptation kit (Ref. SP01KIT).
Supply voltage : 90-240 VAC 50/60 Hz
PC connections : RS232 and Ethernet USB port
Printer connection : USB HOST Port- Compatible PCL/5
Dimensions and weight :
Head: D115 x H243 x W138 mm
Support: L340 x W305 x H70 mm
Stainless steel rod: Length 500 mm
Weight: 6.1 Kg
What's included :
4 Spindles LV
1 GuardLeg LV
1 Rack stand
1 User manual
1 Calibration and checking certificate
1 Carrying case
