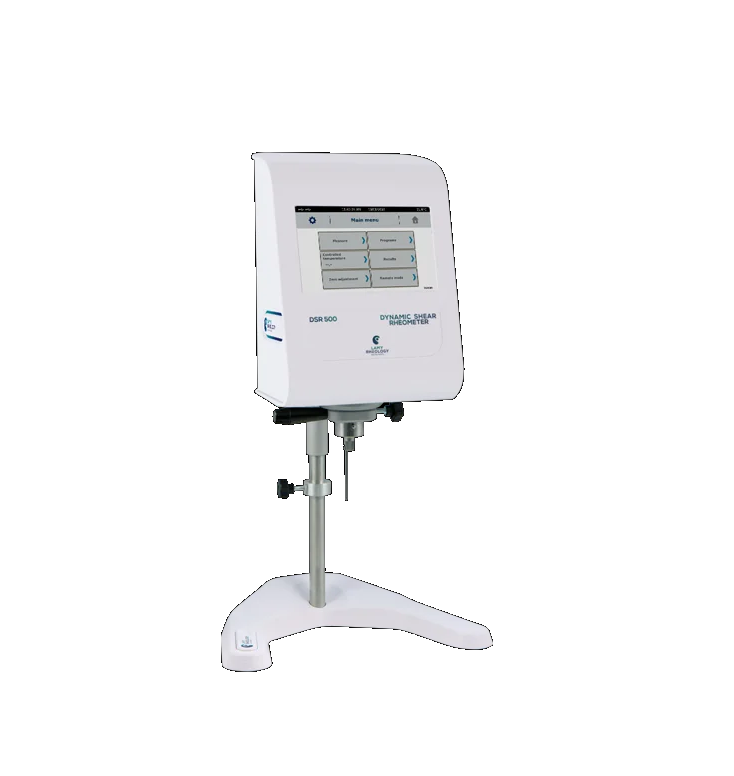

Type of instrument : Rotating springless rheometer with 7’’ Touch screen
Viscosity range (mPa.s): 1 to 780M
Rotation speeds : Unlimited number of speeds between 0.3 and 1500 rpm
Torque range : From 0.05 to 30 mNm
Temperature : The DSR 500 has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C
Accuracy : +/- 1 % of the full scale
Repeatability : +/- 0.2 %
Display : Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time – Temperature
Compatible accessories :
Carrying case
HELIPRO stand
Small volume package
Small volume package
THERMOCELL package
Barcode reader with stand and cable
Bayonet spindle rack
Touch screen protector
Zebra printer
Viscosity standards oil
RheoTex software
External temperature probe -50°C to +300°C
GuardLeg
Security and confidentiality : An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.
Languages : French/English/German/Turkish/Russian/Italian/Portuguese/Korean/Ukrainian
Compatible measuring systems : MS DIN, MS RV/LV, MS BV, MS VANE,MS KREBS, MS R, MS HT, MS ULV, MS SV,
Compatible temperature control : EVA MS-DIN PLUS, EVA MS-R PLUS, EVA LR-BV PLUS, RT-1 PLUS
Supply voltage : 90-240 VAC 50/60 Hz
PC connections : RS232 Port, USB and Ethernet.
Printer connection : USB Host Port - Compatible PCL/5
Dimensions and weight :
Head: D160 x H270 x W200 mm
Stand: L340 x W305 x H70 mm
Stainless steel rod: Length 500 mm
Weight: 6.1 kg
What's included :
1 Stand for DSR500.
1 User manual.
1 Calibration and checking certificate.
1 integrated temperature probe
