Gain: 2 dbi, 3.6 dBi, 4.8 dBi, 4.4 dbi
VSWR: 1.3, 1.3, 1.3, 1.2

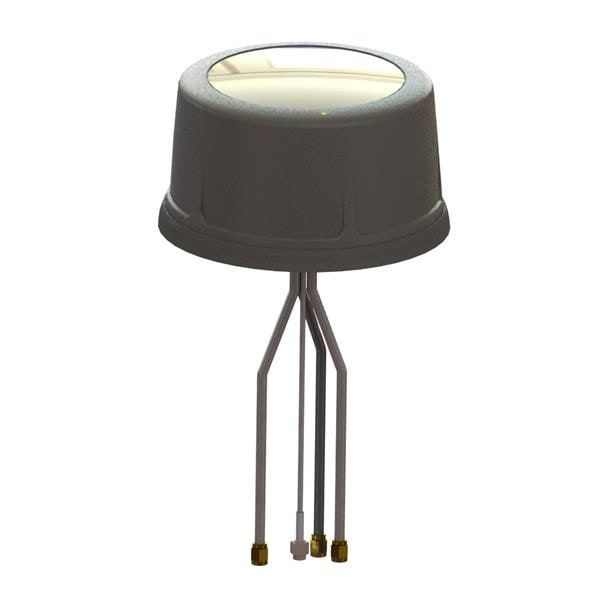

Style: Dome
Length: 132 mm
Diameter: 75 mm
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 17 ft LMR195M x 3, 17 ft RG174
Application: FirstNet/Public Safety, Passenger Fleet, Commercial Vehicle Fleet, Rail Transit
Unit Weight: 1 kg
Cable Length: 5.18 m
Polarization: Vertical Linear
Power Rating: 50 W
Mounting Style: Direct / Permanent Mount
Number of Bands: 7 Band
Center Frequency: 829 MHz 2205 MHz, 2500 MHz, 5400 MHz, 1561.098 MHz, 1.575.42 MHz, 1602 MHz
Mechanical Style: Module
Maximum Frequency: 5.9 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Antenna Connector Type: SMA Male, RPSMA Male
Protocol - GPS, GLONASS: GNSS
Protocol - WiFi - 802.11: WiMAX
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
Protocol - Cellular, NBIoT, LTE: 3G/4G, Cellular (NBIoT, LTE), GSM, UMTS
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
