Gain: 3.4 dBi, 5.5 dBi, 6.6 dBi, 6.2 dBi, 2 dBi
VSWR: 1.9:1, 1.5:1, 1.3:1, 1.3:1, 1.6:1

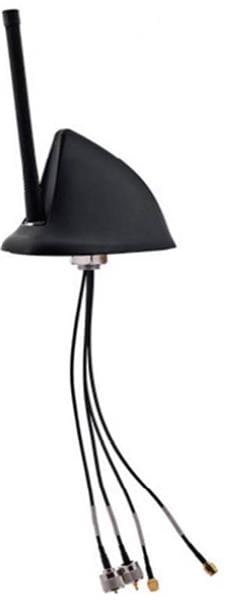

Style: Sharkfin
Width: 98 mm
Height: 70 mm
Length: 160 mm
Bandwidth: 6 MHz
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 5.18 M LMR100 x 4
Application: Public Safety, Transportation, Aftermarket Fleet, Land Mobile Radio
Unit Weight: 520 g
Power Rating: 10 W
Mounting Style: Direct / Permanent Mount
Number of Bands: 6 Band
Center Frequency: 829 MHz, 2205 MHz, 2450 MHz, 5387.5 MHz, 405 MHz, 1575.42 MHz
Mechanical Style: Module
Maximum Frequency: 5.875 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Protocol - Sub GHz: UHF
Antenna Connector Type: SMA Male, PL259
Protocol - GPS, GLONASS: GPS
Protocol - WiFi - 802.11: WLAN
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
Protocol - Cellular, NBIoT, LTE: 4G, Cellular (NBIoT, LTE)
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
