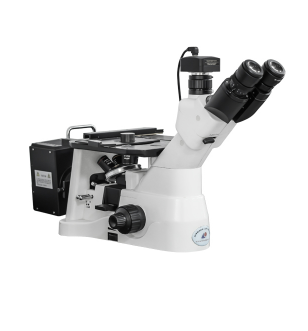

High eye area wide field eyepiece PL10X/22mm
Three eyepiece, eye observation tube, observation and photographic ratio, lo 45 ° inclined, pupil distance adjustment range ：54-75mm；
Low - hand coaxial rough fine - tuning focus mechanism.Movement 38mm，precision fine-tuning0.002mm, adjustable elastic device to prevent slipping
Five-hole converter，reflector cora illuminator with a variable aperture and a central adjustable aperture.
12V50W halogen light，wide voltage100V-240V，the brightness is continuously adjustable. Fixed platform size：160mmX250mm.
10XLMPL10X/0.3 WD10mm
20XLMPL20X/0.45 WD4mm
50XLMPL50X/0.55WD7.8mm
100XLMPL100X/0.80 WD2.1mm(optional)
12V50W halogen light，the filament center is adjustable，the focal length can be adjusted
Metal carrier platform（Center hole diameter 12mm）
Mechanical ruler，movement 120（X）*78（Y）mm
Rectangular loading table
Stage extension
Polarizing lens insert
Biased lens insert，can be 360 ° rotation
Filter(blue, green)
1/2CTV(0.5X),C-mount,adjustable focal
Multiplying power: 50X、100X、200X、500X adjustable（standard 10X eyepiece）
Light source: Reflective cora lighting system（12V50W halogen light），brightness can be adjusted
