Cutting disc: 350 * 2.5 * 32mm
Spindle speed: 2800r/min
Feed speed: 0.01 -3 mm/s is adjustable
Cutting stroke (Y axis): 220mm
Maximum cut sample: φ 100 mm round rods
Maximum clamping distance: 128mm
Working table size: 333mm*240mm
Cutting clamp: Fast push-pull type , the height of the clamp mouth is 60mm
Control: LCD touch screen, button
Lighting: LED lighting
Cooling device: Four channels of cooling water, a cooling water gun
Circulating water tank: External circulating filter water tank 40L
Motor: Power: 4 kw
Emergency brake: Abrupt stop switch
Power supply:: AC380V 50HZ
Overall dimensions: 960*890*725mm, foot center distance 830*710mm
Weight: 200KG
Standard Accessory:

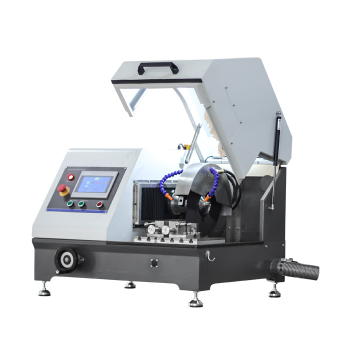

Automatic metallographic cutting machine LC-350YAT: 1
Coling water tank: 1
Cutting disc (350*2.5*32mm): 2
Wrench 22-24: 1
Handle 14 to 17: 1
Allen M6: 1
Outlet pipe Φ 60: 1
Hose hoops: 1
Cutting lubricant: 1 barrel (4L)
Spindle limit bar: 1
Allen M4: 1
Technical documents: 1 copy of product manual, 1 copy of product certificate:
