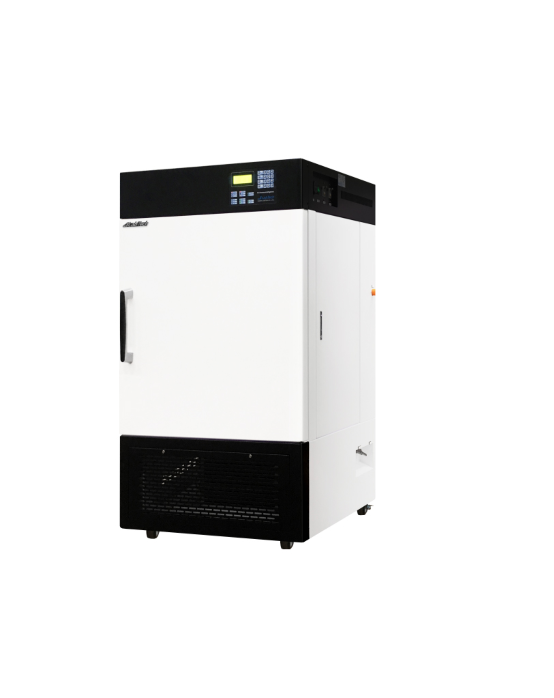

LabTech LGC-5101 Plant Growth Chamber (0°C – 60°C, 30–98% RH)

Internal Dimensions (W × D × H): 600 × 600 × 600 mm

External Dimensions (W × D × H): 800 × 920 × 1385 mm

Capacity: 216 L

Sample Shelves: 2 pcs

Controller: Programmable microprocessor PID controller with alarm system

Display: Monochrome LCD displaying actual and set values (PV & SV)

Temperature:

Temperature Range: 0°C – 60°C (lights off); 10°C – 60°C (lights on)

Setting Accuracy: ±0.1°C

Uniformity: ±1°C at 20°C

Heating Capacity: 2 kW

Compressor Capacity: 1/2 HP

Humidity:

Humidity Range: 30–98% RH

Setting Accuracy: ±1%

Uniformity: ±2 to 3% at 60% RH

Humidity Control Method: Evaporation using a fan and heating element (optional: ultrasonic humidifier)

Lighting:

Adjustment Range: 0–25,000 Lux (optional: 35,000 Lux)

Lamps: 15 × 20 W fluorescent lamps

Sensor: Light sensor with flexible cable

Chamber Material:

Interior: 304 stainless steel

Exterior: EGI steel with epoxy powder coating

Both Side Walls: Fully vacuum-sealed, heat-resistant and safe side walls

Door:

Interior: Tempered glass with silicone gasket for complete sealing

Exterior: Magnetic doors at the front and both sides (with lighting)

Safety Features: Over-temperature protection (low/high), over-current protection, and electrical leakage protection/shut-off

Power Supply: 110 V, 50 Hz or 220 V, 50/60 Hz
